MOLC-125-02-S-Q-LC Samtec MOLC series 100 position 4 row SMT shrouded header with 1.27mm pitch and tin plated phosphor bronze contacts.
Mfr Part #:

MOLC-125-02-S-Q-LC

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec MOLC series 100 position 4 row SMT shrouded header with 1.27mm pitch and tin plated phosphor bronze contacts.
✓ Total Stock: 120 pcs
$ Price Range: $18.75 - $30.85

MOLC-125-02-S-Q-LC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MOLC-125-02-S-Q-LC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

MOLC-125-02-S-Q-LC Description

Short technical summary and product information.

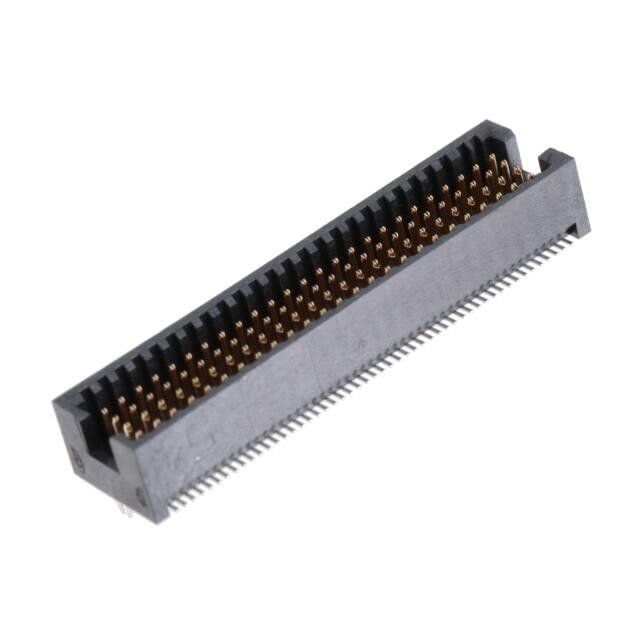

The MOLC-125-02-S-Q-LC is a surface mount board to board header from Samtec's MOLC series. It features 100 male pins arranged in 4 rows at a 1.27mm (0.050") pitch. The connector is fully shrouded with a 4-wall design and includes a board lock feature for secure attachment to the PCB.



Rated for 2.6A per contact and an operating temperature range of -55°C to 125°C, this header uses liquid crystal polymer (LCP) insulation with UL94 V-0 flammability rating. The square male pins have a tin contact finish of 30µin (0.76µm) over phosphor bronze contact material.



The connector has a push-pull fastening type and an insulation height of 5.45mm (0.215"). All 100 positions are loaded and the contact length is 3.30mm (0.130"). The header is intended for surface mount solder termination.

MOLC-125-02-S-Q-LC Quick Information

Product Type: Header
Series: MOLC
Canonical Name: Samtec MOLC-125-02-S-Q-LC 100 position 4 row 1.27mm pitch shrouded header
Subcategory: Board to Board Header

MOLC-125-02-S-Q-LC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MOLC-125-02-S-Q-LC Estimated Pricing

Qty Low High
1+ $30.85 $30.85
10+ $29.21 $29.21
25+ $28.64 $28.64
48+ $27.95 $27.95
112+ $23.83 $23.83
256+ $21.31 $21.31
512+ $18.75 $18.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MOLC-125-02-S-Q-LC Features

  • 4 row 1.27mm pitch surface mount header.
  • 100 male pin positions fully loaded.
  • Shrouded 4-wall design with board lock.
  • Tin plated phosphor bronze contacts.
  • LCP insulation rated UL94 V-0 flammability.

MOLC-125-02-S-Q-LC Applications

  • Board to board stacking applications.
  • High density interconnect systems.
  • Industrial control and automation equipment.
  • Data communication and networking hardware.

MOLC-125-02-S-Q-LC FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the MOLC-125-02-S-Q-LC have?

It has 100 positions loaded, in 4 rows.

What is the pitch of this Samtec header?

The pitch is 1.27mm (0.050").

What is the current rating per contact?

2.6A per contact.

What mounting type does this connector use?

Surface mount (SMT) with solder termination.

Is the header shrouded?

Yes, it is fully shrouded with a 4-wall design and includes a board lock feature.

What is the operating temperature range?

-55°C to 125°C.
