| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | 00+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

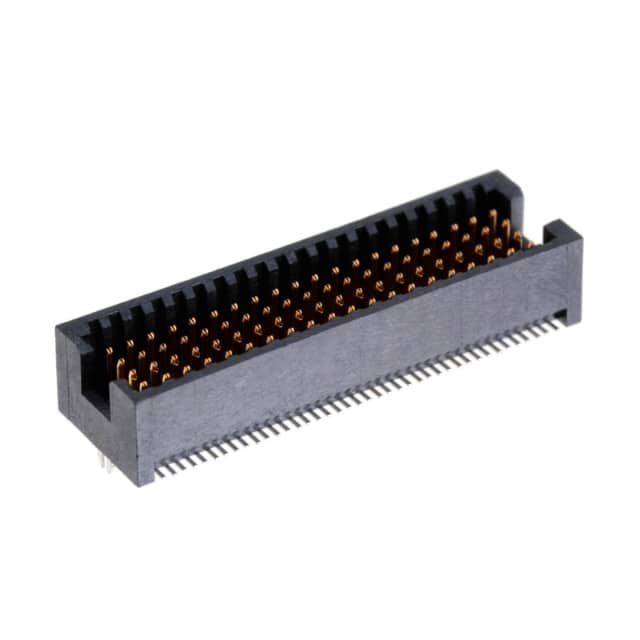

The Samtec MOLC-120-02-S-Q-LC is a high-density quad row header from the MOLC series, designed for board-to-board applications. It features 80 positions arranged in 4 rows with a 1.27mm pitch, enabling compact and efficient interconnections. The connector is surface mount with solder termination, and includes a shrouded 4-wall housing for pin protection and alignment. A board lock feature ensures secure attachment to the PCB during assembly.
The header is rated for 2.6A per contact (with one pin powered per row) and operates over a temperature range of -55°C to 125°C. The insulator is molded from black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with a tin finish (0.76µm thickness). The part is RoHS compliant and lead-free solderable.
This connector mates with the Samtec FOLC series and is suitable for high-density packaging in industrial, commercial, and data communication systems. The surface mount lead style (-02) allows for automated assembly, and tape and reel packaging is available with the -TR suffix.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.72 | $24.72 |
| 10+ | $23.41 | $23.41 |
| 20+ | $22.96 | $22.96 |
| 100+ | $22.49 | $22.49 |
| 260+ | $22.28 | $22.28 |
| 500+ | $21.87 | $21.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
1.27mm.
2.6A per contact (1 pin powered per row).
Surface mount.
4 rows.
-55°C to 125°C.
Yes, RoHS compliant.
