| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Number of Poles | |
| Terminal Type | |
| Type | |
| Voltage Rating |

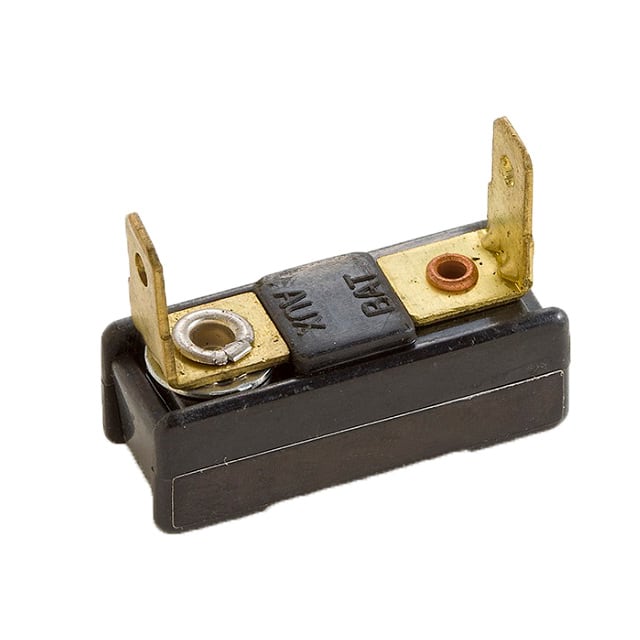

This OptiFuse MOCB2-TP-20A is a modified reset type circuit breaker designed for overcurrent protection in 12VDC systems. It features quick connect terminals for easy installation and a plastic body for durability.
The circuit breaker conforms to American National Standard SAE J553. It is rated for 20A and 12VDC operation. The modified reset mechanism means the device opens on overcurrent and remains open as long as power is applied or until the load is removed. Specifications for open time include: greater than 30 minutes at 100% current, less than 30 minutes at 135% current, and less than 1 minute at 200% current.
This device is intended for occasional overcurrent protection and not for repeated overcurrent conditions or prolonged tripping. Avoid contact with chemical solvents, as prolonged contact may damage performance. The body is constructed from plastic, and it utilizes quick connect terminals for termination.
The OptiFuse MOCB2-TP-20A is a modified reset type circuit breaker.
The voltage rating is 12 VDC.
The current rating is 20A.
Yes, the actuator type is Automatic Reset.
It conforms to American National Standard SAE J553.
The terminals are Quick Connect.
It opens in less than 1 minute at 200% of its rated current.
