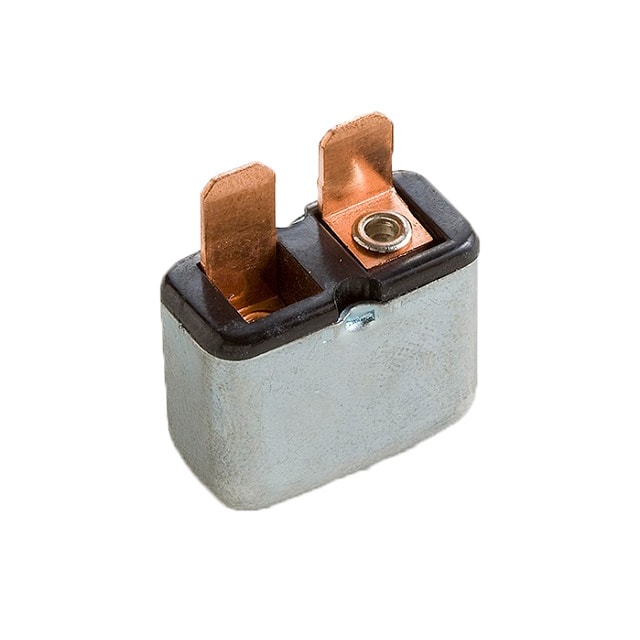

This OptiFuse MOCB2-PL2-30A is a universal style circuit breaker designed for reliable circuit protection. It operates at a voltage rating of 12VDC and can handle a current rating of 30A.
The circuit breaker features an automatic reset type, allowing it to recover after tripping. It is approved by SAEJ553, indicating compliance with relevant industry standards. The operating temperature range for this component is -40°C to 85°C.
Designed for panel mounting, this single-pole circuit breaker offers a robust solution for various applications requiring overcurrent protection. Its interrupt rating specifications include 100% for 30 minutes minimum, 135% for 30 minutes maximum, and 200% for 1 minute maximum.
The MOCB2-PL2-30A is rated for 30A continuous current.
The voltage rating is 12VDC.
It is an automatic reset circuit breaker.
It is a single-pole (1-pole) circuit breaker.
The operating temperature range is -40°C to 85°C.
It holds 100% rated current for at least 30 minutes, trips within 30 minutes at 135% rated current, and trips within 1 minute at 200% rated current.
It is approved to SAEJ553.
