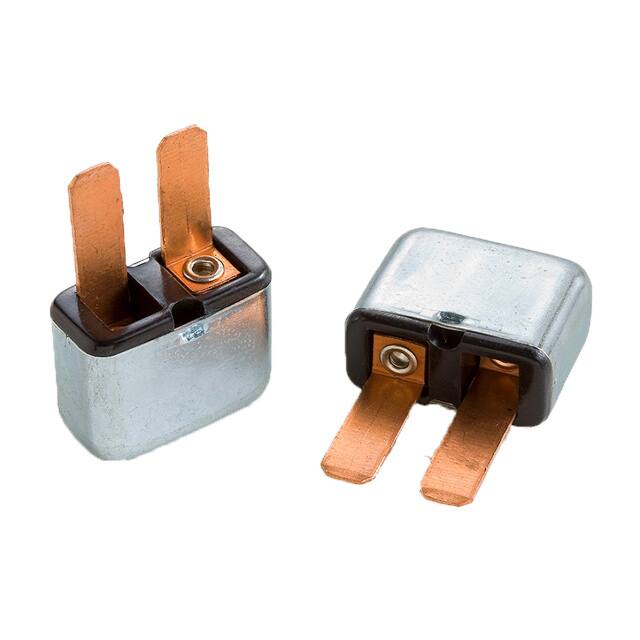

This OptiFuse MOCB2-PL-30A is a universal style circuit breaker rated for 30 Amps and 12 Volts DC. It conforms to SAE J553 Type II standards, indicating its suitability for specific automotive and industrial applications.
The breaker operates within a temperature range of -40°C to 85°C and features a modified reset mechanism. Its interrupt ratings are specified at 100% for 60 minutes minimum, 135% for 60 minutes maximum, and 200% for 1 minute maximum, across a range of 6-40 Amps.
The body is constructed from plated steel, providing durability for demanding environments. This component is designed for applications requiring reliable overcurrent protection in a 12VDC system.
The OptiFuse MOCB2-PL-30A circuit breaker has a current rating of 30A.
The voltage rating for the MOCB2-PL-30A circuit breaker is 12 VDC.
The OptiFuse MOCB2-PL-30A circuit breaker features a modified reset type.
The operating temperature range for this circuit breaker is -40°C to 85°C.
Yes, the MOCB2-PL-30A circuit breaker meets SAE J553 Type II standards.
