| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Type | |
| Voltage Rating |

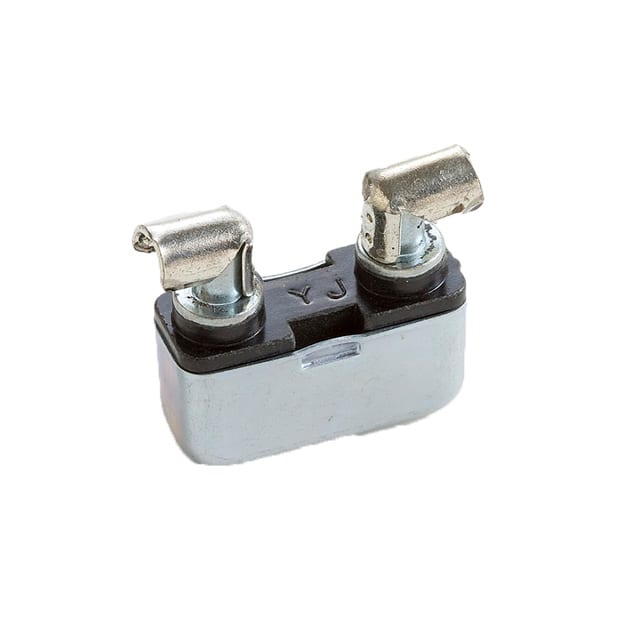

This OptiFuse MOCB2-CL-35A is a modified reset type circuit breaker. Modified reset circuit breakers are designed to open during over-current conditions and remain open until power is removed or the load is disconnected. It operates at a 12VDC voltage rating and has a current rating of 35A.
The circuit breaker conforms to the American National Standard SAE J553. It features a durable metal body construction. The device is intended for occasional overcurrent protection, and operation beyond specified maximum ratings may lead to damage or electrical arcing.
Key specifications include various open times depending on the current percentage. At 100% of rating, the open time is greater than 30 minutes. At 135% of rating, it trips in less than 30 minutes, and at 200% of rating, it trips in less than 1 minute. The device is not intended for repeated overcurrent conditions or prolonged tripping.
It is important to avoid contact with chemical solvents, as prolonged contact may degrade the device's performance. The clip-type mounting is suitable for specific applications requiring this termination style.
35A.
12VDC.
At 135% of rating, it opens within 30 minutes; at 200% of rating, within 1 minute.
Clip type mounting.
Modified reset.
Yes, it is SAEJ553 approved.
1 pole.
