Mfr Part #:

MOCB-24-H-20A

Mfr Name: OptiFuse

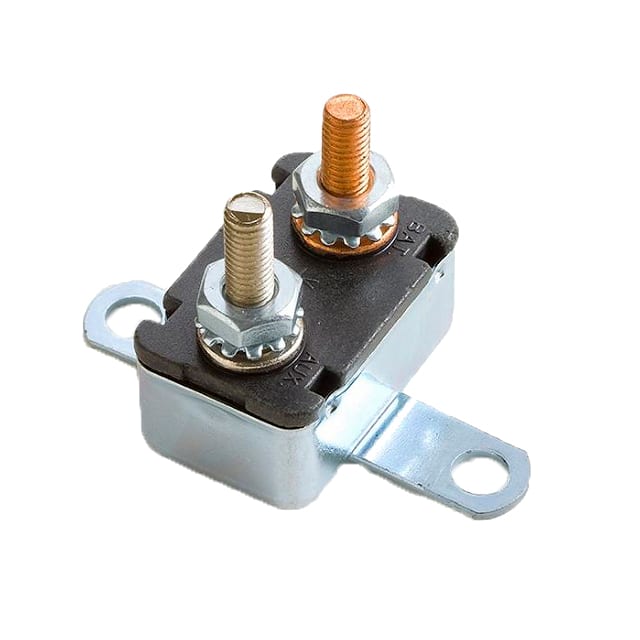

The OptiFuse MOCB-24-H-20A is a 20A, 24VDC automotive circuit breaker with a Type II Modified Reset function. It is approved by SAE J553.

Stock on Request

MOCB-24-H-20A Description

Short technical summary and product information.

This OptiFuse MOCB-24-H-20A is an automotive circuit breaker designed for 24VDC systems. It features a Type II Modified Reset mechanism and a current rating of 20A, with an interrupting rating of 2000A at 24VDC.

The circuit breaker is approved by SAE J553 and operates within a temperature range of -40°C to 80°C. It has a 10-32 stud terminal configuration and a mounting type described as 'Bracket attached crosswise the case'. The dimensions are approximately 0.22 inches (5.7mm) by 1.56 inches (39.7mm).

Key electrical specifications include a minimum trip time of 30ms at 100% and 135% of rated current, and 1ms at 200% of rated current. The terminals are made of copper and zinc-plated steel.

This component is suitable for various automotive applications requiring reliable circuit protection.

MOCB-24-H-20A Quick Information

Product Type: Circuit Breaker

Canonical Name: OptiFuse MOCB-24-H-20A Automotive Circuit Breaker

Subcategory: Automotive Circuit Breaker

MOCB-24-H-20A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MOCB-24-H-20A Features

20A current rating at 24VDC.
Type II Modified Reset function.
SAE J553 approval standard.
Wide operating temperature range.
10-32 stud terminal configuration.

MOCB-24-H-20A Applications

Automotive electrical system protection.
Used in vehicles requiring circuit breakers.
Suitable for 24VDC power distribution.
Protection against overcurrent faults.

MOCB-24-H-20A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the voltage rating of the MOCB-24-H-20A?

24VDC.

What is the operating temperature range?

-40°C to 80°C.

What is the current rating?

20A.

What is the interrupting rating?

2000A at 24VDC.

What type of circuit breaker is this?

Type II Modified Reset.

What approvals does it have?

SAE J553.

What are the trip times?

Minimum 30ms at 100% and 135% rated current, minimum 1ms at 200% rated current.

Category	Circuit Breakers
Manufacturer Name	OptiFuse
Actuator Type	Automatic Reset
Approval Agency	SAE J553
Current Rating	20A
Current Rating (Amps)	20A
Dimensions	0.22[5.7] x 1.56[39.7]
Illumination	None
Mounting Type	Bracket attached crosswise the case
Number of Poles	1
Voltage Rating	24VDC
