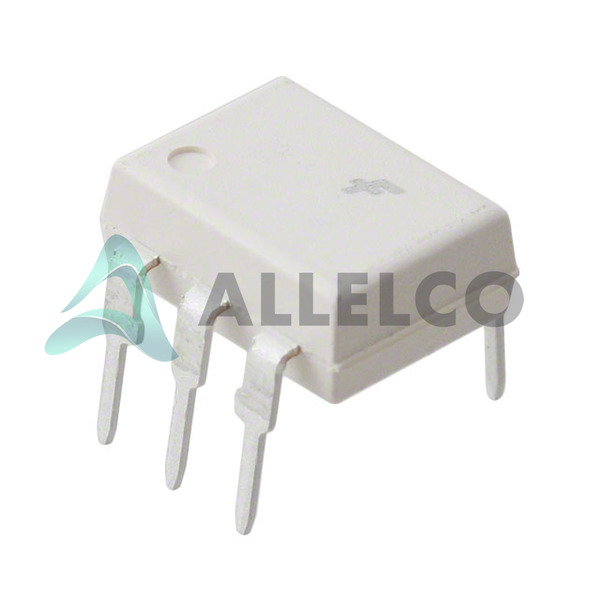

MOC3062M The On Semiconductor MOC3062M is a Triac Driver Optocoupler designed for interfacing logic systems to AC power lines. It features zero voltage crossing and 600V peak blocking voltage.
Mfr Part #:

MOC3062M

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor MOC3062M is a Triac Driver Optocoupler designed for interfacing logic systems to AC power lines. It features zero voltage crossing and 600V peak blocking voltage.
✓ Total Stock: 7,905 pcs
$ Price Range: $7.60

MOC3062M Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,150 pcs
On Request
3150 pcs On Request 1 On Request On Request 17+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
1,850 pcs
On Request
1850 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
1,760 pcs
On Request
1760 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,145 pcs
On Request
1145 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MOC3062M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Mounting Type
Number of Channels
Operating Temperature
Output Type
Static dV
Supplier Device Package
Voltage
Zero Crossing Circuit
View Similar Products (0)

MOC3062M Description

Short technical summary and product information.

The MOC3062M from On Semiconductor is a 6-pin DIP Triac Driver Optocoupler. It consists of a GaAs infrared emitting diode coupled to a monolithic silicon detector, performing the function of a zero voltage crossing bilateral triac driver. This device is designed for use with a triac in the interface of logic systems to equipment powered from 115/240 V AC lines.



Key electrical specifications include a 600V peak blocking voltage and a static dv/dt rating of 600V/µs. The optocoupler provides 4170Vrms of isolation and operates with a current of 10mA. It features a zero crossing circuit, making it suitable for minimizing conducted and radiated line noise.



This component is mounted through hole and comes in a standard 6-DIP package. The operating temperature range is -40°C to 85°C. It is UL approved.



Applications include solid-state relays, industrial controls, motors, solenoids, and consumer appliances such as lighting controls, AC motor starters, and AC motor drives.

MOC3062M Quick Information

Product Type: Triac Driver Optocoupler
Canonical Name: MOC3062M Triac Driver Optocoupler
Subcategory: Triac Output

MOC3062M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MOC3062M Estimated Pricing

Qty Low High
1+ $7.60 $7.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

MOC3062M Features

  • 600V peak blocking voltage.
  • Zero voltage crossing capability.
  • 4170Vrms isolation voltage.
  • Through hole mounting.
  • 6-DIP package.

MOC3062M Applications

  • Solid-state relay applications.
  • Industrial control systems.
  • Motor and solenoid control.
  • Consumer appliance control.
  • Lighting control circuits.

MOC3062M FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak blocking voltage for the MOC3062M?

The MOC3062M has a peak blocking voltage of 600 V.

Does the MOC3062M have a zero crossing circuit?

Yes, the MOC3062M features a zero crossing circuit.

What is the isolation voltage of the MOC3062M?

The MOC3062M provides 4170Vrms of isolation.

What is the operating temperature range for the MOC3062M?

The MOC3062M operates between -40°C and 85°C.

What package type is the MOC3062M available in?

The MOC3062M is available in a 6-DIP package.
