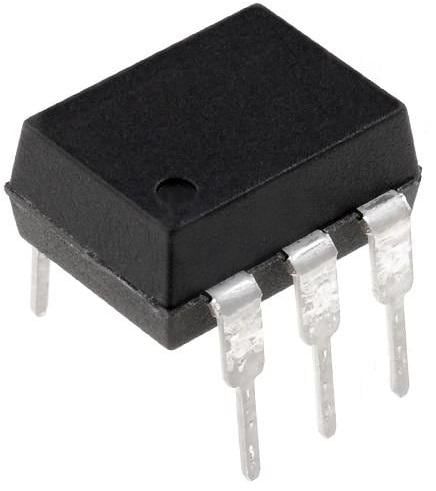

MOC3020M The ON Semiconductor MOC3020M is a Triac driver optocoupler designed for interfacing electronic controls with power triacs. It features a 400V peak blocking voltage and a 6-DIP package.
Mfr Part #:

MOC3020M

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor MOC3020M is a Triac driver optocoupler designed for interfacing electronic controls with power triacs. It features a 400V peak blocking voltage and a 6-DIP package.
✓ Total Stock: 4,516 pcs
$ Price Range: $7.60

MOC3020M Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MOC3020M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Mounting Type
Number of Channels
Operating Temperature
Output Type
Supplier Device Package
Voltage
Zero Crossing Circuit
View Similar Products (0)

MOC3020M Description

Short technical summary and product information.

The MOC3020M from ON Semiconductor is an optically isolated triac driver optocoupler. It is designed to interface electronic controls with power triacs, enabling the control of resistive and inductive loads for AC operations.



This device features a peak repetitive off-state voltage of 400V and an isolation voltage of 5.3kV. It requires an input current of 10mA and has a Triac output type. The optocoupler operates within a temperature range of -40°C to 85°C.



Packaged in a 6-DIP through-hole mount configuration, the MOC3020M is suitable for various industrial control applications. It is part of the MOC301XM & MOC302XM series and is designed for non-zero crossing applications.



Key specifications include a 4170Vrms UL rating and a 10mA input current. The device has one channel and is designed for reliable operation in demanding environments.

MOC3020M Quick Information

Product Type: Optocoupler
Canonical Name: MOC3020M Triac Driver Optocoupler
Subcategory: Triac, SCR Output

MOC3020M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MOC3020M Estimated Pricing

Qty Low High
1+ $7.60 $7.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

MOC3020M Features

  • 400V peak repetitive off-state voltage.
  • 5.3kV isolation voltage rating.
  • 10mA input current required.
  • Triac output type.
  • Through-hole 6-DIP package.

MOC3020M Applications

  • Industrial control applications.
  • Solenoid and valve controls.
  • Static AC power switching.
  • Solid state relay designs.
  • Incandescent lamp dimming.

MOC3020M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive off-state voltage for the MOC3020M?

The MOC3020M has a peak repetitive off-state voltage of 400V.

What is the isolation voltage of the MOC3020M optocoupler?

The isolation voltage for the MOC3020M is 5.3kV.

What is the required input current for the MOC3020M?

The MOC3020M requires an input current of 10mA.

What type of output does the MOC3020M optocoupler provide?

The MOC3020M provides a Triac output.

Does the MOC3020M have a zero crossing circuit?

No, the MOC3020M does not have a zero crossing circuit.

What is the operating temperature range for the MOC3020M?

The MOC3020M operates between -40°C and 85°C.

What package type is the MOC3020M available in?

The MOC3020M is available in a 6-DIP package.
