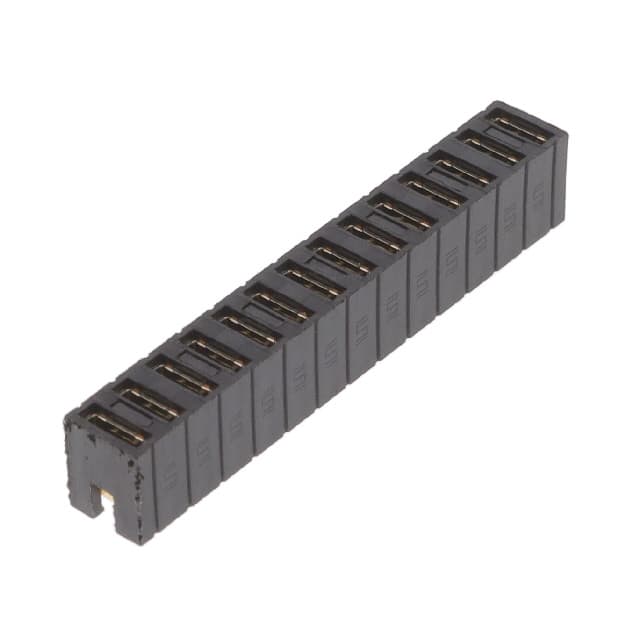

MNT-114-BK-G Samtec MNT-114-BK-G is a 28 position (2x14) female socket shunt strip with 2.54mm pitch. It features gold plated contacts, black LCP housing, and is rated for 3.9A per contact and 450VAC.
Mfr Part #:

MNT-114-BK-G

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec MNT-114-BK-G is a 28 position (2x14) female socket shunt strip with 2.54mm pitch. It features gold plated contacts, black LCP housing, and is rated for 3.9A per contact and 450VAC.
✓ Total Stock: 76 pcs
$ Price Range: $2.31 - $4.44

MNT-114-BK-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
76 pcs
On Request
76 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MNT-114-BK-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Finish Thickness
Current Rating (Amps)
Gender
Height
Housing Material
Lead Spacing
Lead Style
Material Flammability Rating
Number of Positions or Pins (Grid)
Operating Temperature Range
Pitch
Tape & Reel
Type
Working Voltage
View Similar Products (0)

MNT-114-BK-G Description

Short technical summary and product information.

The Samtec MNT-114-BK-G is a 28 position (2x14) female socket shunt strip from the MNT series, designed for use with Samtec TMMH, TMM, MTMM, and other compatible header series. It features a 2.54mm (0.100") pitch and an open top design that allows easy probing and access. The housing is made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, ensuring durability and safety in various applications.



Electrically, the shunt strip is rated for 3.9A per contact when one pin is powered per row, with a working voltage of 450 VAC. The contacts are gold plated with a thickness of 10µin (0.25µm), providing reliable low-level signal connections and corrosion resistance. The operating temperature range is -55°C to +125°C for gold plating, making it suitable for a wide range of environments.



This shunt strip is commonly used to short adjacent pins on a header for configuration settings, programming, or test points. It is ideal for prototyping, production boards, and applications requiring reliable interconnection in compact spaces. The part is RoHS3 compliant (unverified) and has an MSL of 1 (Unlimited).

MNT-114-BK-G Quick Information

Product Type: Shunt Strip
Series: MNT
Canonical Name: Samtec MNT-114-BK-G 28 Position (2x14) Female Socket Shunt Strip, 2.54mm Pitch, Black, Gold Plating
Subcategory: Shunts

MNT-114-BK-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

MNT-114-BK-G Estimated Pricing

Qty Low High
1+ $4.44 $4.44
500+ $3.58 $3.58
1,000+ $3.38 $3.38
2,500+ $2.75 $2.75
5,000+ $2.31 $2.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

MNT-114-BK-G Features

  • 28 position (2x14) female socket shunt strip.
  • 2.54mm (0.100") pitch spacing.
  • Rated for 3.9A per contact at 450VAC.
  • Gold plated contacts for reliable connections.
  • Black LCP housing with UL94 V-0 rating.

MNT-114-BK-G Applications

  • Used to short adjacent header pins.
  • Ideal for configuration jumpers on PCBs.
  • Suitable for test and measurement equipment.
  • Common in prototyping and production boards.

MNT-114-BK-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

28 positions arranged as 2 rows of 14.

What is the pitch?

2.54mm (0.100").

What is the current rating?

3.9A per contact (1 pin powered per row).

What is the voltage rating?

450 VAC.

What is the operating temperature range?

-55°C to +125°C (gold plating).

What is the contact finish?

Gold, 10µin (0.25µm) thickness.

What is the housing material?

Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating.
