| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
986 pcs
|
986 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
986 pcs
|
986 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height | |
| Height (Max) | |
| Impedance @ Frequency | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Width |

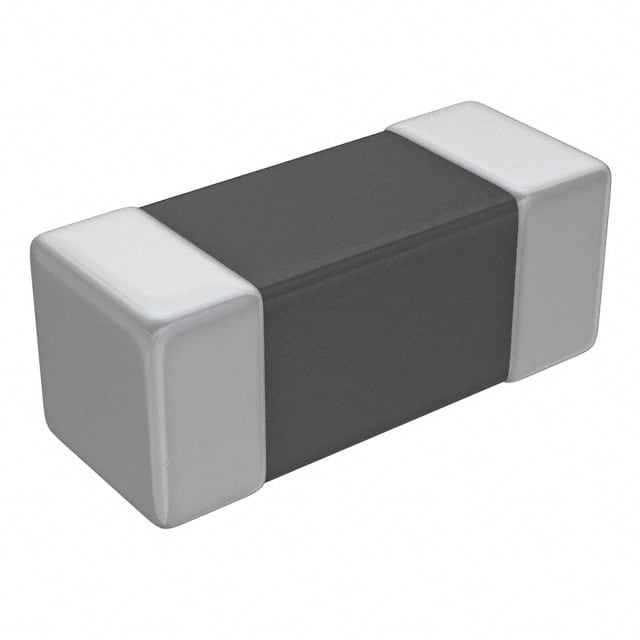

The TDK Corporation MMZ2012R601AT000 is a single-line ferrite bead with a nominal impedance of 600 Ohms at 100 MHz. It is designed for signal line filtering applications and has a maximum current rating of 500mA.
This component features a low DC resistance of 200mOhm (max) and operates within a temperature range of -55°C to 125°C. The package size is 0805 (2012 Metric), measuring 2.00mm in length and 1.25mm in width, with a maximum height of 1.05mm.
The ferrite bead is constructed for surface mounting, making it suitable for automated assembly processes. Its specifications make it a reliable choice for noise suppression and filtering in various electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the MMZ2012R601AT000 is 600 Ohms at 100 MHz.
The maximum current rating for the MMZ2012R601AT000 is 500mA.
The maximum DC resistance (DCR) is 200mOhm.
The operating temperature range is -55°C to 125°C.
It is supplied in an 0805 (2012 Metric) package.
The MMZ2012R601AT000 is a surface mount device.
The RoHS status is RoHS3 Compliant.
