| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,000 pcs
|
32000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Width |

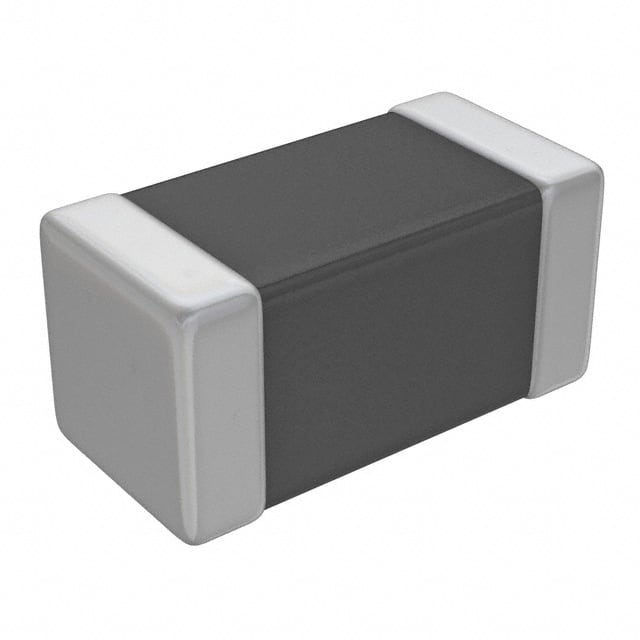

The TDK Corporation MMZ1608A152ETA00 is a single-line ferrite bead with an impedance of 1.5 kΩ at 100 MHz. It is designed for signal line filtering applications and has a maximum current rating of 300mA and a maximum DC resistance of 1 Ohm.
This component operates within a temperature range of -55°C to 125°C. It is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width. The mounting type is surface mount, making it suitable for automated assembly processes.
The MMZ1608A152ETA00 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the MMZ1608A152ETA00 at 100 MHz is 1.5 kΩ.
The maximum current rating for the MMZ1608A152ETA00 is 300mA.
The maximum DC resistance (DCR) of the MMZ1608A152ETA00 is 1 Ohm.
The operating temperature range for the MMZ1608A152ETA00 is -55°C to 125°C.
The MMZ1608A152ETA00 is in a 0603 (1608 Metric) package.
The MMZ1608A152ETA00 is a surface mount component.
