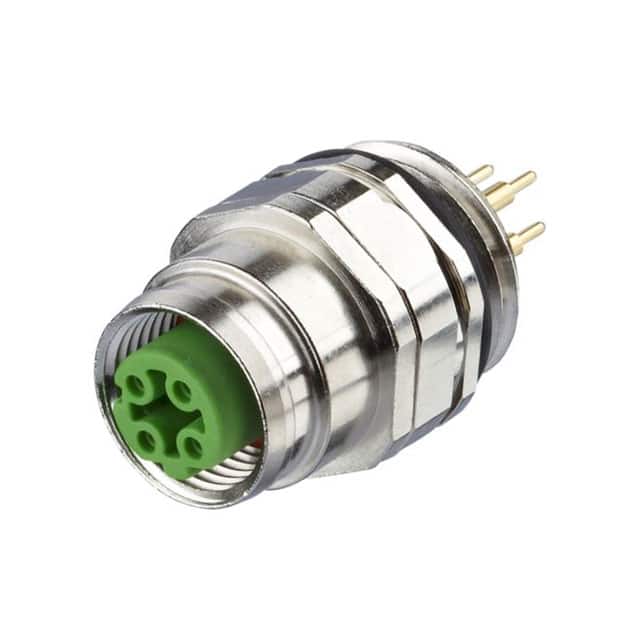

MMW360A1A1 M12 D-coded 4-pole female PC board jack with solder termination, IP67 rated, rated 250V and 4A.
Mfr Part #:

MMW360A1A1

Available from 1 distributors
Mfr Name: Metz Connect
Metz Connect
M12 D-coded 4-pole female PC board jack with solder termination, IP67 rated, rated 250V and 4A.
✓ Total Stock: 2 pcs
$ Price Range: $23.79 - $34.82

MMW360A1A1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MMW360A1A1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Contact Material
Current Rating
Diameter
Fastening Type
Height
Housing Material
Ingress Protection
Insulation Resistance
Mating Cycles
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Operating Temperature Range
Orientation
Primary Material
Rated Voltage
SVHC Present
Shell Material
Shell Size
Shielding
Standards
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

MMW360A1A1 Description

Short technical summary and product information.

The MMW360A1A1 is a M12 D-coded 4-pole female PC board jack from METZ CONNECT. It features a threaded fastening type and is designed for panel mount with through-hole solder termination. The connector is unshielded with a metal shell made of CuZnPb and gold-plated contacts (Ni + Au contact surface).



Electrical ratings include a rated voltage of 250 V, current carrying capacity of 4 A at 40 °C, withstand voltage of 1.4 kV, and minimum insulation resistance of 100 MOhm. The operating temperature range is -40°C to 90°C. The connector is rated IP67 when mated, providing dust-tight and waterproof protection.



The insulating body is made of PA UL 94 V0, and the contact carrier is green. The connector is suitable for railway applications per DIN EN 50155 and DIN EN 45545-2. UL/CSA approval is pending.

MMW360A1A1 Quick Information

Product Type: Circular Connector Assembly
Series: M12
Canonical Name: M12 D-coded 4-pole Female PC Board Jack, Front Mounting, Solder Termination
Subcategory: M12 Connector

MMW360A1A1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MMW360A1A1 Estimated Pricing

Qty Low High
1+ $34.82 $34.82
10+ $29.58 $29.58
20+ $27.62 $27.62
50+ $26.65 $26.65
100+ $25.38 $25.38
200+ $23.79 $23.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

MMW360A1A1 Features

  • M12 D-coded 4-pole female connector.
  • Rated voltage 250V and current 4A.
  • IP67 dust-tight and waterproof protection.
  • Solder termination for panel mount.
  • Gold-plated contacts for reliable connection.

MMW360A1A1 Applications

  • Suitable for railway rolling stock electronics.
  • Used in industrial automation and connectivity.
  • Ideal for building automation I/O components.
  • Applicable in data center cabling solutions.

MMW360A1A1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the connector type and number of positions?

Jack, Female Sockets with 4 positions.

What is the current rating and voltage rating?

Current rating is 4 A at 40 °C, rated voltage is 250 V.

What is the mounting type?

Panel Mount, Through Hole with bulkhead rear side nut.

What is the ingress protection rating?

IP67 - Dust Tight, Waterproof when plugged in.

What is the operating temperature range?

-40°C to 90°C.

What standards does this connector comply with?

DIN EN 50155 and DIN EN 45545-2 for railway applications.
