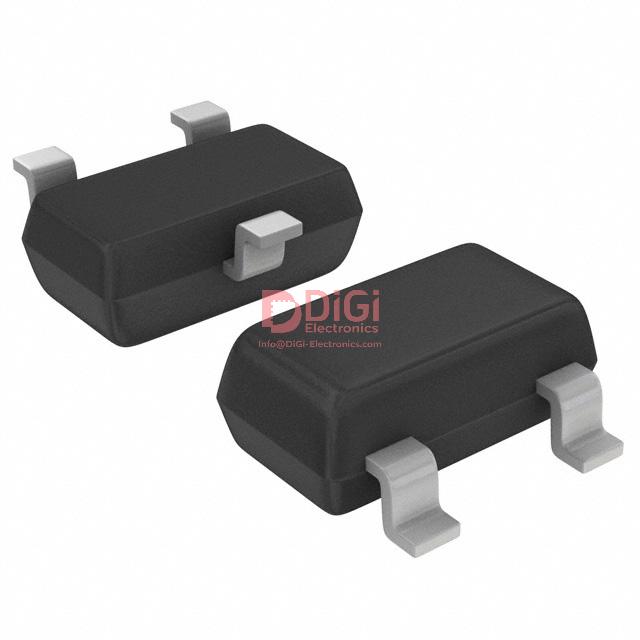

The ON Semiconductor MMUN2136LT1G is a PNP pre-biased bipolar transistor designed for simplified circuit design and reduced board space. This device integrates a single transistor with a monolithic bias network, consisting of a series base resistor and a base-emitter resistor, eliminating the need for external components.
Key electrical specifications include a collector-emitter voltage of 50V and a continuous collector current of 100mA. It has a maximum power dissipation of 246mW and a base resistor of 100 kΩ. The DC current gain (hFE) is a minimum of 80 at 5mA collector current and 10V Vce, with a Vce saturation of 250mV maximum at 300µA base current and 10mA collector current.
This transistor is housed in a surface-mount SOT-23-3 (TO-236) package. It is supplied on tape and reel in standard quantities of 3000 units. The device is Pb-Free and Halogen Free/BFR Free, complying with RoHS standards.
This component is suitable for applications where a simplified bias network is desired, reducing component count and system cost.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage for the MMUN2136LT1G is 50V.
The continuous collector current for the MMUN2136LT1G is 100mA.
The power dissipation of the MMUN2136LT1G is 246mW.
The base resistor (R1) in the MMUN2136LT1G is 100 kΩ.
The MMUN2136LT1G is supplied in a SOT-23-3 (TO-236) surface-mount package.
Yes, the MMUN2136LT1G is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) for the MMUN2136LT1G is 1.
