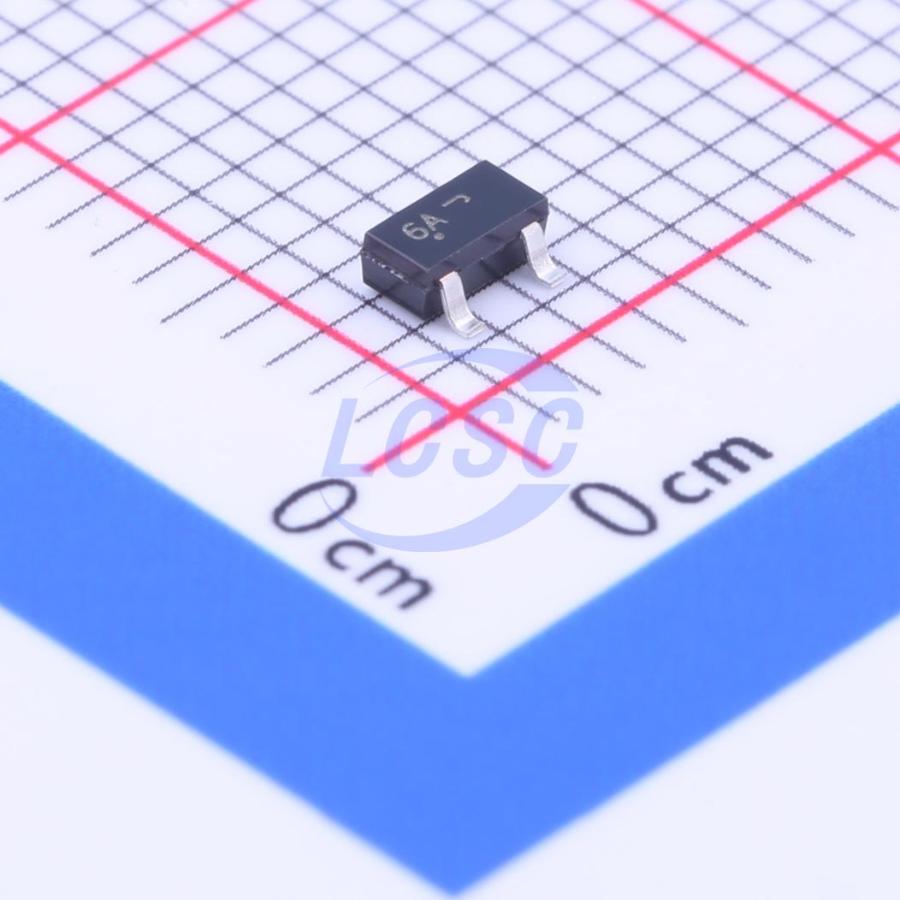

MMUN2111LT3G The MMUN2111LT3G is a PNP Pre-Biased Transistor from ON Semiconductor. It features a 50V collector-emitter voltage and a 100mA continuous collector current, housed in a SOT-23-3 package.
Mfr Part #:

MMUN2111LT3G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The MMUN2111LT3G is a PNP Pre-Biased Transistor from ON Semiconductor. It features a 50V collector-emitter voltage and a 100mA continuous collector current, housed in a SOT-23-3 package.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.99

MMUN2111LT3G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MMUN2111LT3G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Halogen Free
Mounting Type
Power
Resistor
Supplier Device Package
Supplier Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

MMUN2111LT3G Description

Short technical summary and product information.

The MMUN2111LT3G is a PNP Pre-Biased Transistor (BRT) from ON Semiconductor, designed to simplify circuit design by integrating a transistor with a monolithic bias resistor network. This device eliminates the need for external resistors, reducing component count and board space.



Key electrical characteristics include a maximum collector-emitter voltage (VCEO) of 50Vdc and a continuous collector current (IC) of 100mAdc. It also features a DC current gain (hFE) of 35 minimum at 5mA/10V and a Vce saturation of 250mV maximum at 300µA/10mA. The integrated bias resistor has a nominal value of 10 kΩ.



This transistor is supplied in a SOT-23-3 (TO-236) surface mount package. It is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant. The device is suitable for applications requiring simplified circuitry and reduced component footprint.

MMUN2111LT3G Quick Information

Product Type: PNP Transistor
Canonical Name: MMUN2111LT3G PNP Pre-Biased Transistor
Subcategory: Pre-Biased BJT

MMUN2111LT3G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb−Free

MMUN2111LT3G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MMUN2111LT3G Features

  • PNP Pre-Biased Transistor
  • 50V Collector-Emitter Voltage
  • 100mA Continuous Collector Current
  • Integrated 10 kΩ Bias Resistor
  • SOT-23-3 Surface Mount Package

MMUN2111LT3G Applications

  • Used in signal switching circuits
  • Suitable for amplification applications
  • Ideal for pre-biasing in compact devices
  • Applicable in portable electronic products

MMUN2111LT3G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the MMUN2111LT3G?

The maximum collector-emitter voltage (VCEO) is 50 Vdc.

What is the continuous collector current rating?

The continuous collector current (IC) is 100 mAdc.

What type of transistor is the MMUN2111LT3G?

It is a PNP Pre-Biased Transistor.

What package is the MMUN2111LT3G supplied in?

It is supplied in a SOT-23-3 (TO-236) surface mount package.

What is the integrated bias resistor value?

The integrated bias resistor value is 10 kΩ.
