| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

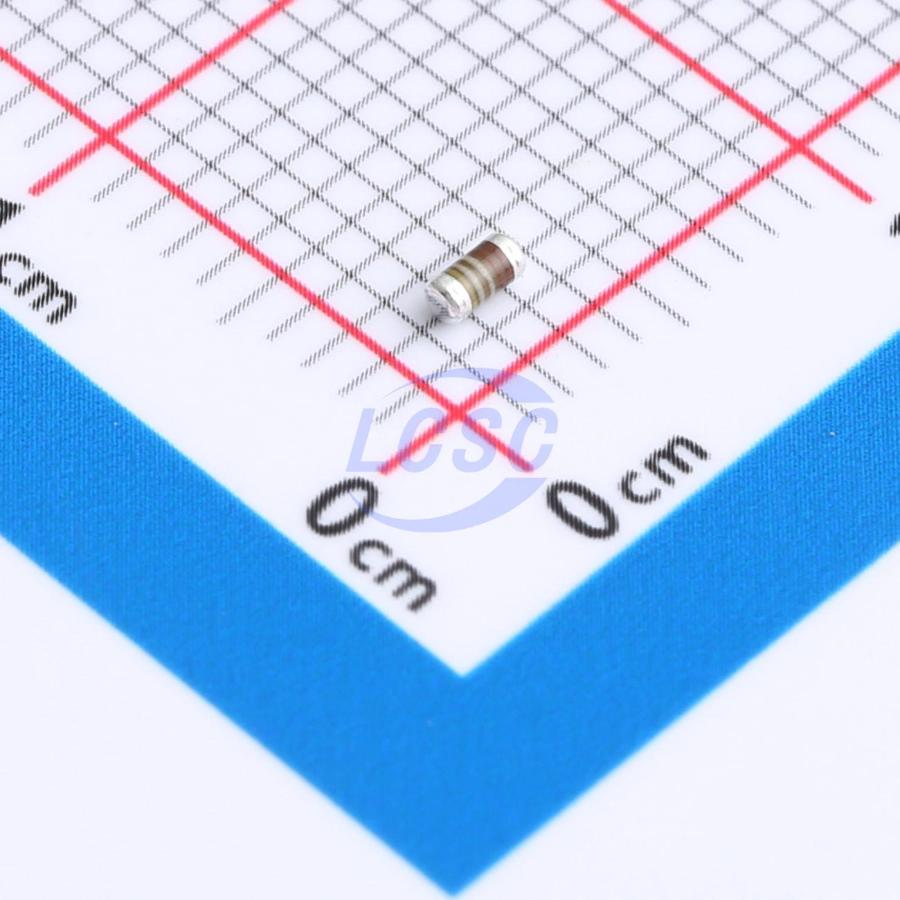

This Vishay Dale MMU01020C4991FB300 is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 4.99 kΩ with a tight tolerance of ±1% and a power rating of 0.3W.
The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±50ppm/°C. Its construction is thin film, and it has 2 terminations. The component is built to withstand pulses and offers anti-sulfur properties, making it suitable for demanding environments. It is also rated AEC-Q200, indicating its suitability for automotive applications.
The package size is 0.055" Dia x 0.142" L (1.40mm x 3.60mm), and it comes in a MELF, 0102 package type. The Moisture Sensitivity Level (MSL) is 1 Unlimited, and it is RoHS3 Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 4.99 kΩ.
The tolerance is ±1%.
The power rating is 0.3W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
It is a MELF, 0102 package.
