| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

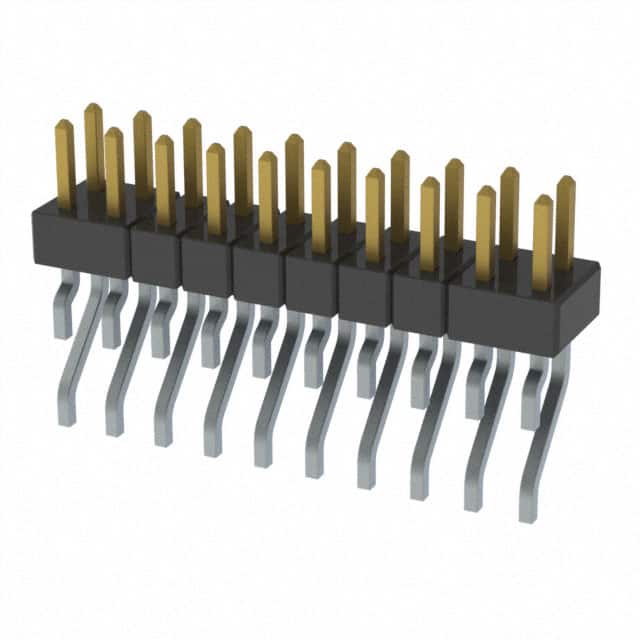

The Samtec MMT-110-01-L-DH is a 20-position, 2.00mm pitch, double-row surface mount right angle header from the MMT series. It is designed for board-to-board or cable applications and mates with Samtec CLT, SQT, SQW, ESQT, TLE, SMM, MMS series receptacles and TCSD cable assemblies.
The header features male square pins with a gold flash (10µin) on the mating area and matte tin on the tail for reliable solderability. The insulator is molded from black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to +125°C, and the current rating is 3A per contact.
The component is surface mount with a right-angle orientation and uses solder termination. The contact length (post) is 3.20mm. The part is lead-free solderable and has an SMT lead coplanarity of 0.10mm max for positions 2-25.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.77 | $2.77 |
| 27+ | $2.64 | $2.64 |
| 54+ | $2.48 | $2.48 |
| 108+ | $2.33 | $2.33 |
| 513+ | $2.27 | $2.27 |
| 1,026+ | $2.14 | $2.14 |
| 2,511+ | $1.97 | $1.97 |
| 5,022+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, all loaded, in 2 rows.
2.00mm (0.079 inches).
3A per contact.
Surface mount, right angle.
-55°C to +125°C.
Gold flash, 10µin (0.25µm).
RoHS3 compliant (unverified).
