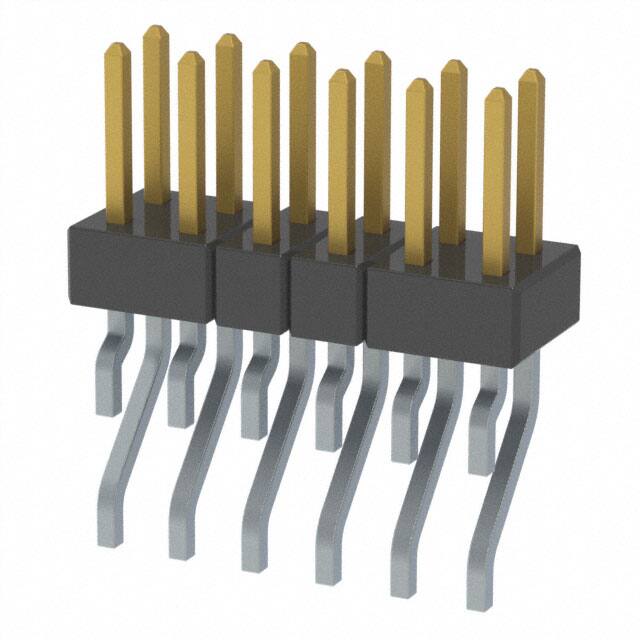

MMT-106-02-S-DH-K-TR The Samtec Inc. MMT-106-02-S-DH-K-TR is a 12-position male pin header with a 2mm pitch. It features a surface mount right angle mounting style.
Mfr Part #:

MMT-106-02-S-DH-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. MMT-106-02-S-DH-K-TR is a 12-position male pin header with a 2mm pitch. It features a surface mount right angle mounting style.
✓ Total Stock: 2,182 pcs
$ Price Range: $1.00

MMT-106-02-S-DH-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2,182 pcs
On Request
2182 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MMT-106-02-S-DH-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

MMT-106-02-S-DH-K-TR Description

Short technical summary and product information.

This Samtec Inc. header, part number MMT-106-02-S-DH-K-TR, is designed for board-to-board or cable applications. It offers 12 positions across two rows with a 2mm pitch. The connector type is a male pin header with a surface mount, right angle mounting style.



Key features include a phosphor bronze contact material with tin plating and a liquid crystal polymer (LCP) insulation material in black. The insulation height is 4.00mm, and the contact length is 4.45mm. It is rated for a current of 3A and operates within a temperature range of -55°C to 125°C. The material has a UL94 V-0 flammability rating.



This header is suitable for applications requiring a compact and reliable connection. Its surface mount design facilitates automated assembly processes, and the push-pull fastening type ensures secure mating.

MMT-106-02-S-DH-K-TR Quick Information

Product Type: Header
Canonical Name: Samtec Inc. MMT-106-02-S-DH-K-TR Header, Male Pin, 12 Positions, 2 Rows, 2mm Pitch, Surface Mount, Right Angle
Subcategory: Male Pin Header

MMT-106-02-S-DH-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MMT-106-02-S-DH-K-TR Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MMT-106-02-S-DH-K-TR Features

  • 12 positions in a 2-row configuration.
  • 2mm pitch for compact designs.
  • Surface mount right angle mounting.
  • 3A current rating.
  • Operating temperature range -55°C to 125°C.

MMT-106-02-S-DH-K-TR Applications

  • Ideal for board-to-board connections.
  • Suitable for cable assembly applications.
  • Designed for automated pick and place.
  • Used in compact electronic devices.

MMT-106-02-S-DH-K-TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact material of the connector?

The contact material is phosphor bronze.

How many positions does this connector have?

It has 12 positions.

What is the contact pitch of this connector?

The contact pitch is 2.00mm.

What mounting style does this connector use?

It uses surface mount, right angle mounting.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation height of this connector?

The insulation height is 4.00mm (0.157 inches).
