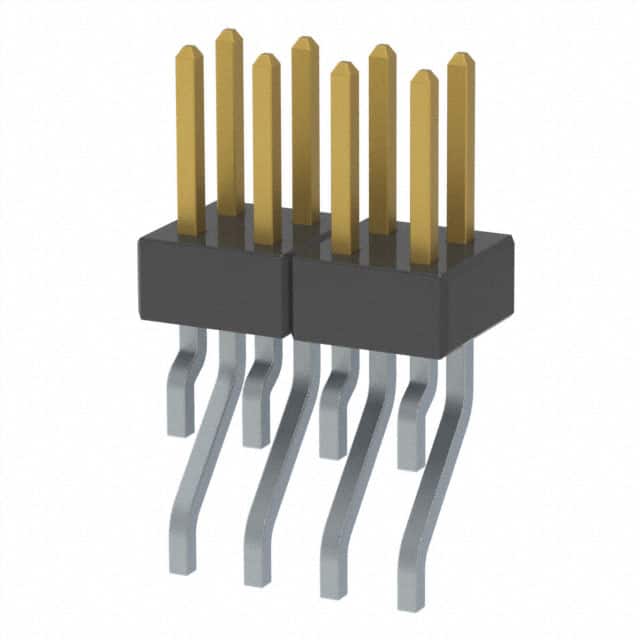

MMT-104-02-S-DH-K-TR The MMT-104-02-S-DH-K-TR from Samtec is a 8-position, 2.00mm pitch header with male pins, surface mount right angle orientation. It features tin-plated phosphor bronze contacts and a black LCP insulation.
Mfr Part #:

MMT-104-02-S-DH-K-TR

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The MMT-104-02-S-DH-K-TR from Samtec is a 8-position, 2.00mm pitch header with male pins, surface mount right angle orientation. It features tin-plated phosphor bronze contacts and a black LCP insulation.
✓ Total Stock: 3,760 pcs
$ Price Range: $2.77

MMT-104-02-S-DH-K-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,880 pcs
On Request
1880 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,880 pcs
On Request
1880 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MMT-104-02-S-DH-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

MMT-104-02-S-DH-K-TR Description

Short technical summary and product information.

The MMT-104-02-S-DH-K-TR is a 8-position, 2-row header with male pins from Samtec. It features a 2.00mm pitch and 2.00mm row spacing, with a contact length of 4.45mm and an insulation height of 4.00mm. The contacts are made of phosphor bronze with a tin finish of 30.0µin (0.76µm) and have a square shape. The insulation material is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The mounting type is surface mount, right angle, with solder termination. The fastening type is push-pull, and the connector is unshrouded. Designed for board-to-board or cable applications, it includes a pick and place feature for automated assembly. The current rating is 3A, and the operating temperature range is -55°C to 125°C. The part is packaged in tape and reel for automated placement.

MMT-104-02-S-DH-K-TR Quick Information

Product Type: Pin Header
Series: MMT
Canonical Name: 8-Position 2.00mm Pitch Surface Mount Right Angle Header, Male Pins
Subcategory: Male Pins

MMT-104-02-S-DH-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MMT-104-02-S-DH-K-TR Estimated Pricing

Qty Low High
400+ $2.77 $2.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

MMT-104-02-S-DH-K-TR Features

  • 8-position 2-row 2.00mm pitch header.
  • Surface mount right angle orientation.
  • Tin-plated phosphor bronze contacts.
  • Operating temperature from -55°C to 125°C.
  • Pick and place compatible.

MMT-104-02-S-DH-K-TR Applications

  • Used in board-to-board connections.
  • Cable-to-board interconnect applications.
  • Suitable for space-constrained designs.
  • Ideal for automated assembly processes.

MMT-104-02-S-DH-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MMT-104-02-S-DH-K-TR have?

8 positions in 2 rows.

What is the pitch of the MMT-104-02-S-DH-K-TR?

2.00mm

What is the current rating of the MMT-104-02-S-DH-K-TR?

3A

What is the mounting type of the MMT-104-02-S-DH-K-TR?

Surface Mount, Right Angle

What is the operating temperature range of the MMT-104-02-S-DH-K-TR?

-55°C to 125°C

What is the contact finish on the MMT-104-02-S-DH-K-TR?

Tin with 30.0µin (0.76µm) thickness

What is the insulation material of the MMT-104-02-S-DH-K-TR?

Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating
