| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage | |
| Halogen Free | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Dissipation | |
| Supplier Device Package | |
| Tolerance | |
| Voltage |

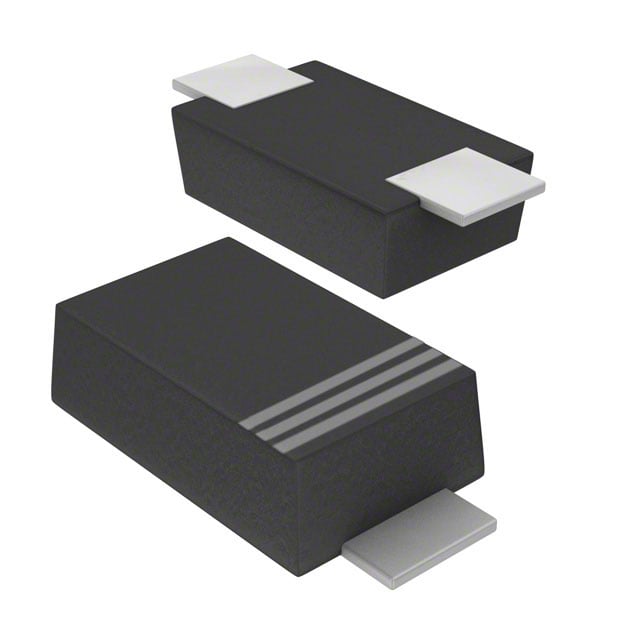

The Micro Commercial MMSZ5248B-TP is a Zener diode designed for voltage regulation applications. It features a nominal Zener voltage of 18V with a tolerance of ±5% and a maximum power dissipation of 500 mW. The diode has a low forward voltage of 900 mV at 10 mA and a reverse leakage current of 100 nA at 14 V. Its Zener impedance is a maximum of 21 Ω at the test current of 20 mA.
This component is suitable for surface mount applications and comes in a compact SOD-123 package. The operating temperature range is from -55°C to +150°C, making it robust for various environmental conditions. The MMSZ5248B-TP is RoHS3 Compliant, Halogen Free, and Lead Free.
Key electrical characteristics include a 18V Zener voltage and 500mW power rating. The SOD-123 package is ideal for space-constrained designs. Its wide operating temperature range ensures reliability in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 18V.
The maximum power dissipation is 500 mW.
The operating temperature range is -55°C to +150°C.
It is supplied in a SOD-123 package.
Yes, it is RoHS3 Compliant.
