| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact System | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination |

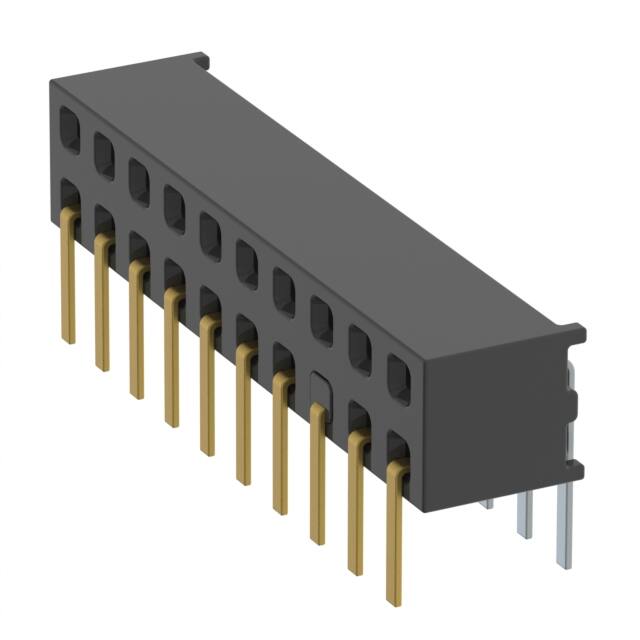

The MMS-110-01-L-DH-05 is a 20 position (19 loaded) receptacle from Samtec's MMS series of classic socket strips. It features a 2.00mm pitch and dual row configuration with female socket contacts. The connector is designed for through hole right angle mounting and uses solder termination.
This receptacle employs Samtec's Tiger Claw dual wipe contact system, providing reliable electrical performance. The contacts are finished with tin and have a thickness of 10.0µin. Each contact is rated for 3.9A, and the connector supports data rates up to 8 Gbps NRZ. The operating temperature range is -55°C to 125°C.
The MMS-110-01-L-DH-05 is suitable for board-to-board or cable applications. It is packaged in a tube containing 28 parts. The insulation is black with a height of 4.00mm, and the fastening type is push-pull.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.51 | $4.51 |
| 28+ | $4.08 | $4.08 |
| 112+ | $3.80 | $3.80 |
| 504+ | $3.72 | $3.72 |
| 1,008+ | $3.56 | $3.56 |
| 2,520+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions, with 19 positions loaded.
2.00mm (0.079 inches).
3.9A per contact.
Through hole, right angle.
-55°C to 125°C.
Tin with a thickness of 10.0µin (0.25µm).
Up to 8 Gbps NRZ.
