| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination |

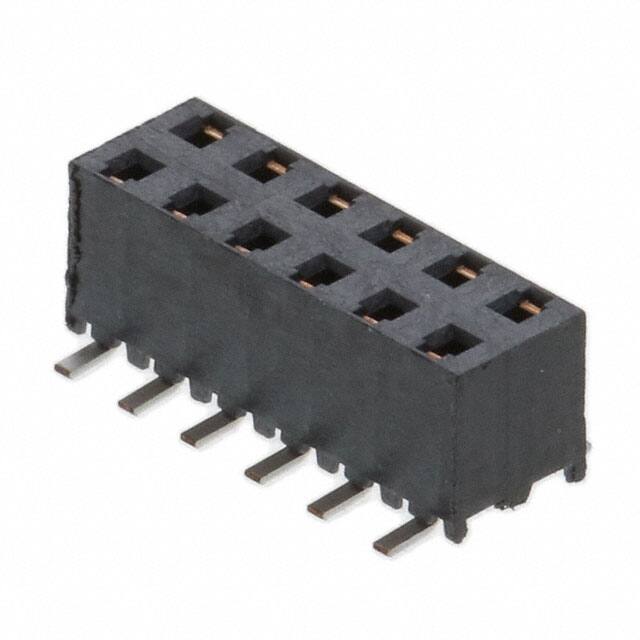

The MMS-106-02-L-DV-K-TR is a 12-position, 2-row receptacle from Samtec's MMS series of Classic Socket Strips. These connectors feature a 2.00mm pitch and Tiger Claw dual wipe contact system for reliable performance.
Key specifications include a current rating of 3.9A per pin (2 pins powered), an operating temperature range of -55°C to 125°C with gold plating, and support for data rates up to 8 Gbps. The contact finish is 10µin gold on the mating area with matte tin on the tail.
The connector is surface mount with a polyimide film pick and place pad for automated assembly. It is lead-free solderable and has a maximum SMT lead coplanarity of 0.15mm. Packaging is Tape & Reel with 675 parts per reel.
Typical applications include board-to-board stacking and cable connections in high-speed digital systems, industrial controls, and telecommunications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.54 | $3.54 |
| 50+ | $3.45 | $3.45 |
| 100+ | $2.90 | $2.90 |
| 675+ | $2.34 | $2.34 |
| 1,350+ | $2.20 | $2.20 |
| 2,025+ | $2.15 | $2.15 |
| 4,725+ | $1.86 | $1.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions (2 rows).
2.00mm (0.079 inches).
3.9A per pin (2 pins powered).
Surface mount (SMD) with solder termination.
-55°C to 125°C with gold plating.
Up to 8 Gbps.
Gold (10µin) on mating area, matte tin on tail.
