| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
257 pcs
|
257 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| SMT Lead Coplanarity | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Tape and Reel Available | |
| Tape/Reel Available | |
| Termination |

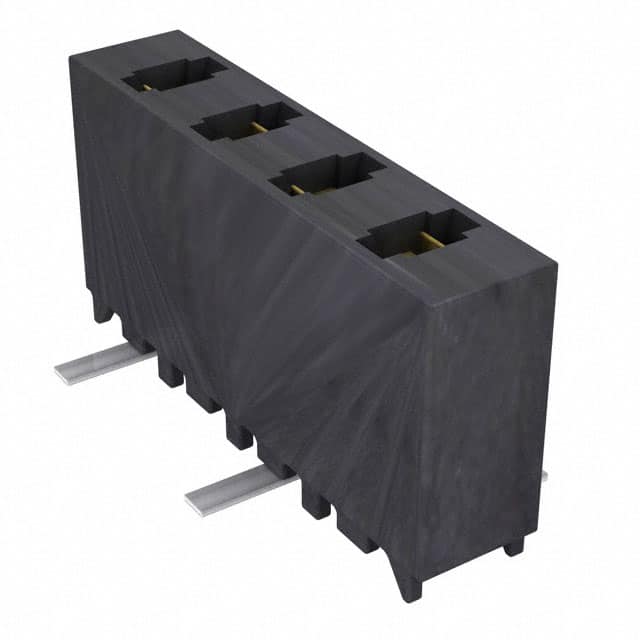

The Samtec MMS-104-02-L-SV is a 4 position, single row, 2.00mm pitch receptacle socket strip from the MMS series. It features a surface mount termination with solder tails and a push-pull fastening mechanism. The insulator is molded from black LCP and the contacts are phosphor bronze with 10µ" gold plating over 50µ" nickel, ensuring reliable signal integrity.
This connector is rated for 3.9A per contact (with 2 pins powered) and operates over a temperature range of -55°C to +125°C with gold plating. It is designed for board-to-board or cable applications and supports up to 8 Gbps performance. The SMT leads have a maximum coplanarity of 0.15mm.
The MMS-104-02-L-SV is supplied in tubes with a standard package quantity of 68 pieces. Tape and reel packaging options are also available for automated assembly. The part is lead-free solderable and RoHS3 compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.66 | $1.66 |
| 68+ | $1.32 | $1.32 |
| 1,020+ | $1.23 | $1.23 |
| 2,040+ | $1.12 | $1.12 |
| 5,032+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions in a single row configuration.
The pitch is 2.00mm (0.079 inches).
3.9A per contact when 2 pins are powered.
-55°C to +125°C with gold plating.
Surface mount with solder termination.
