| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength (1 minute) | |
| Dissipation Factor (25°C, 1 kHz) | |
| Features | |
| Insulation Resistance @25°C | |
| Lead Style | |
| Life Test (85°C, 125% rated voltage, 1000 hours) | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Derating (85°C to 125°C) | |
| Voltage Rating |

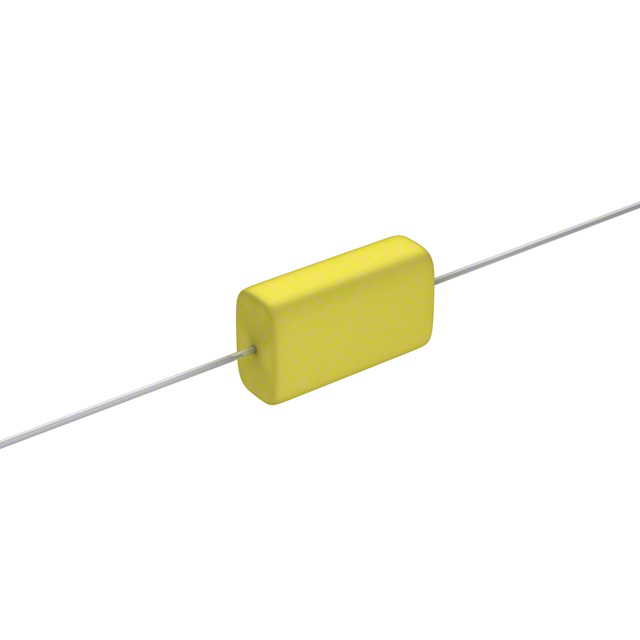

The Cornell Dubilier MMP6S15K is a Type MMP metallized polyester film capacitor designed for applications where component height is critical. It features a non-inductive winding and self-healing capabilities, providing stability and long life.
This capacitor offers a capacitance of 0.015 µF with a ±10% tolerance and a DC voltage rating of 630 V. It is housed in an axial leaded, through-hole package with PC pin terminations. The operating temperature range is -55°C to 125°C, with linear voltage derating to 50% at 125°C.
Key electrical characteristics include a maximum dissipation factor of 1% at 25°C and 1 kHz, a minimum insulation resistance of 5000 MΩ·µF (or 10000 MΩ min), and a dielectric strength of 175% of rated voltage for 1 minute. The part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 400+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.015 µF with a tolerance of ±10%.
The DC voltage rating is 630 V.
The dielectric material is metallized polyester.
The operating temperature range is -55°C to 125°C.
The package is axial with through-hole mounting and PC pin terminations.
The maximum dissipation factor is 1% at 25°C and 1 kHz.
The part is listed as RoHS3 compliant, though this data is unverified.
