| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

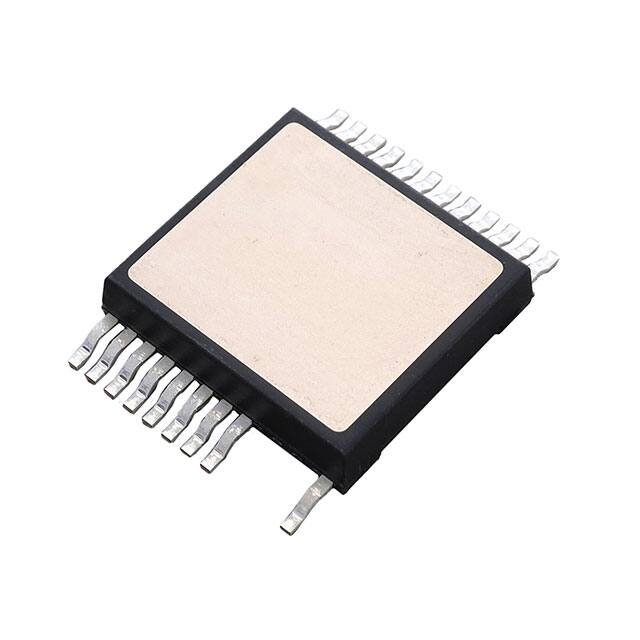

This IXYS MMIX1F420N10T is an N-Channel MOSFET with a maximum drain-source voltage (Vdss) of 100V. It offers a high continuous drain current capability of 334A at a case temperature (Tc) and a low on-resistance (Rds On) of 2.6mOhm at 60A and 10V gate-source voltage.
The MOSFET operates within a temperature range of -55°C to 175°C (TJ) and has a maximum power dissipation of 680W (Tc). Key electrical parameters include a gate-source voltage (Vgs) range of ±20V, a gate threshold voltage (Vgs(th)) of 5V at 8mA, a gate charge (Qg) of 670nC at 10V, and an input capacitance (Ciss) of 4700pF at 10V.
Designed for surface mounting, this component comes in a 24-PowerSMD, 21 Leads package, specifically identified as a 24-SMPD supplier device package. Its technology is based on MOSFET (Metal Oxide) principles, making it suitable for various power switching and control applications where high current and voltage handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 100 V.
The continuous drain current is 334A.
The on-resistance (Rds On) is a maximum of 2.6mOhm at 60A and 10V gate-source voltage.
The operating temperature range is -55°C to 175°C (TJ).
It is supplied in a 24-PowerSMD, 21 Leads package, identified as 24-SMPD, for surface mounting.
