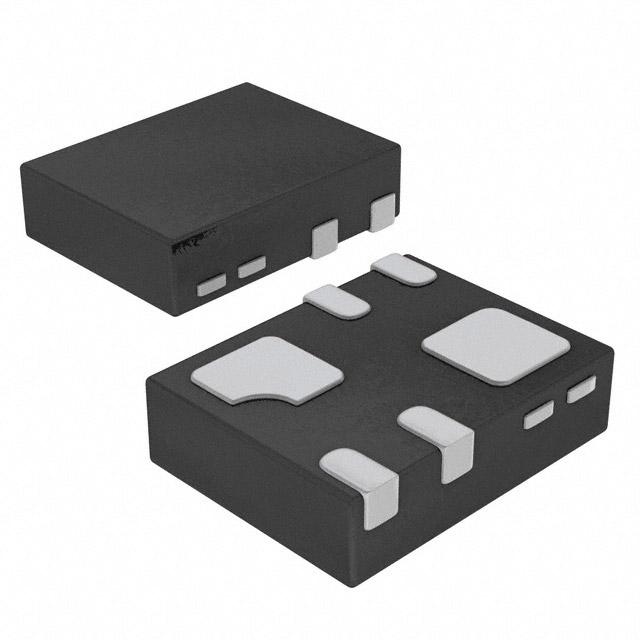

The MMDT3946LP4-7 from Diodes Incorporated is a surface-mount transistor array featuring a complementary pair of NPN (3904) and PNP (3906) transistors. This device is constructed using epitaxial planar die technology, making it suitable for automated assembly processes.
Key electrical specifications include a collector-emitter breakdown voltage of 40V for both NPN and PNP sections, and a continuous collector current of up to 200mA. The NPN section offers a minimum DC current gain (hFE) of 100 at 10mA and 1V, with a Vce(sat) of 300mV at 5mA/50mA. The PNP section has a similar Vce(sat) of 400mV at 5mA/50mA. The transition frequency is rated at 300MHz for the NPN and 250MHz for the PNP.
This transistor array is housed in a compact DFN1310H4-6 package, measuring 1.30mm x 1.00mm. It is designed for surface mounting, with terminals finished in NiPdAu over copper leadframe, suitable for lead-free soldering. The device is rated for a maximum power dissipation of 200mW and has a thermal resistance of 625°C/W.
The MMDT3946LP4-7 is RoHS 3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is also designated as a "Green" device by the manufacturer, indicating compliance with their lead-free policy.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter breakdown voltage is 40V.
The maximum continuous collector current is 200mA.
The maximum power dissipation is 200mW.
The package type is 6-SMD, No Lead, specifically a DFN1310H4-6.
Yes, the MMDT3946LP4-7 is RoHS 3 compliant.
The Moisture Sensitivity Level is 1 Unlimited.
