| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,659,000 pcs
|
2659000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
430 pcs
|
430 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC-Q101 | |
| Capacitance @ Vr, F | |
| Current | |
| Diode Capacitance | |
| Forward Current | |
| Forward Voltage | |
| Halogen Free | |
| Junction and Storage Temperature | |
| Mounting Type | |
| Non-Repetitive Peak Forward Surge Current | |
| Operating Temperature | |
| Packaging Type | |
| Repetitive Peak Forward Current | |
| Reverse Breakdown Voltage | |
| Reverse Leakage Current (Maximum @ V_R = 20 Vdc) | |
| Reverse Leakage Current (Maximum @ V_R = 75 Vdc) | |
| Reverse Recovery Time | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| Speed | |
| Standard Package Quantity | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance Junction-to-Ambient | |
| Total Device Dissipation | |
| Voltage |
The MMDL914T3G is a high-speed switching diode manufactured by On Semiconductor. It is designed for general purpose switching applications requiring fast recovery times. The diode features a maximum reverse voltage rating of 100V and a forward current rating of 200mA, with a reverse recovery time of just 4ns, making it suitable for high-frequency circuits.

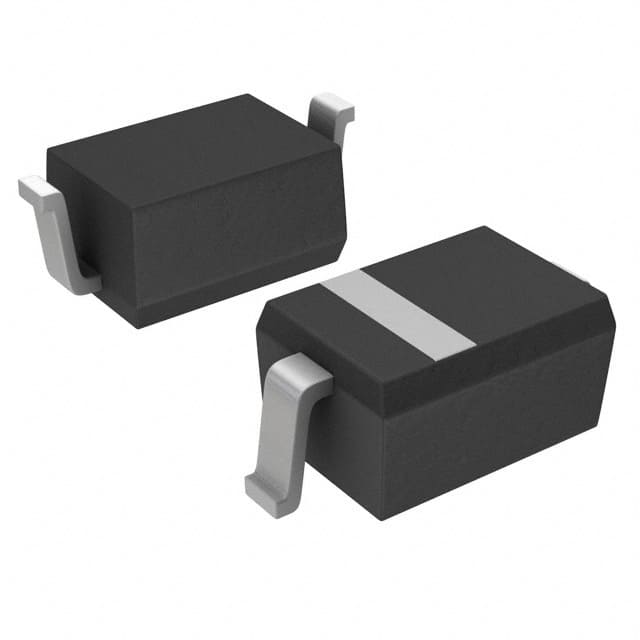

This device is housed in a compact SOD-323 surface mount package, which is ideal for space-constrained designs. The operating temperature range spans from -55°C to 150°C, allowing use in harsh environments. The diode also exhibits low leakage current (25nA at 20V reverse bias) and low capacitance (4pF), contributing to efficient high-speed performance.
The MMDL914T3G is compliant with RoHS, Pb-free, and Halogen Free/BFR Free requirements, supporting environmentally conscious manufacturing. It is supplied in tape and reel packaging with a standard quantity of 10,000 units per reel, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.21 | $0.21 |
| 10+ | $0.10 | $0.10 |
| 100+ | $0.06 | $0.06 |
| 500+ | $0.04 | $0.04 |
| 1,000+ | $0.03 | $0.03 |
| 2,500+ | $0.03 | $0.03 |
| 5,000+ | $0.03 | $0.03 |
| 10,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100V.
200mA.
1.0V maximum.
4.0ns maximum.
SOD-323 (SC-76) surface mount package.
-55°C to 150°C.
