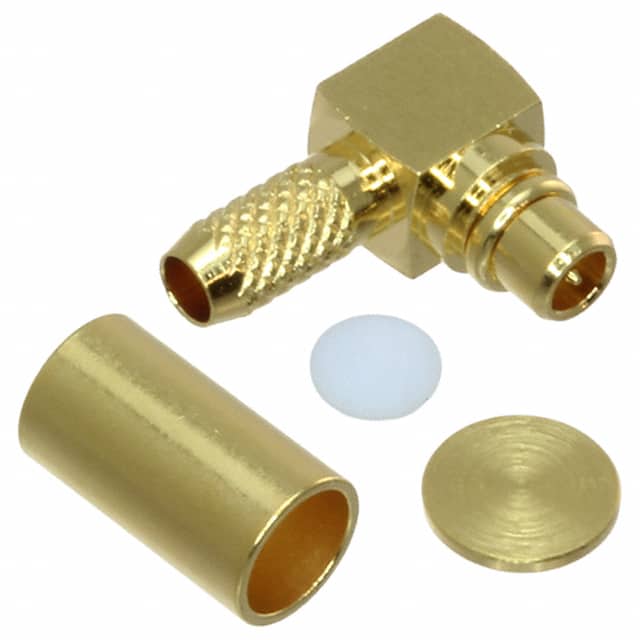

MMCX-P-C-H-RA-CA1 MMCX right-angle plug, male pin, 50 Ohm impedance, solder contact termination, crimp shield, for RG-174 and RG-316 cables.
Mfr Part #:

MMCX-P-C-H-RA-CA1

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
MMCX right-angle plug, male pin, 50 Ohm impedance, solder contact termination, crimp shield, for RG-174 and RG-316 cables.
✓ Total Stock: 202 pcs
$ Price Range: $5.05 - $7.00

MMCX-P-C-H-RA-CA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
202 pcs
On Request
202 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MMCX-P-C-H-RA-CA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Orientation
Shield Termination
Tape & Reel
Termination Style
View Similar Products (0)

MMCX-P-C-H-RA-CA1 Description

Short technical summary and product information.

The Samtec MMCX-P-C-H-RA-CA1 is a 50 Ohm MMCX right-angle plug connector designed for use with RG-174 and RG-316 coaxial cables. It features a snap-on fastening mechanism and a gold-plated brass center contact with 30 µ" gold plating, ensuring reliable signal integrity up to 6 GHz.



This connector is part of Samtec's MMCX cable connector series, offering a compact and durable solution for RF applications. The right-angle orientation facilitates space-constrained installations. The contact termination is solder, while the shield termination is crimp, providing a secure connection to the cable.



Packaged as a free-hanging (in-line) connector, it is suitable for use in various RF modules, antennas, and test equipment. The gold housing color indicates the plating finish. The part is RoHS3 compliant and has an MSL of 1 (unlimited) as per available data.

MMCX-P-C-H-RA-CA1 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: MMCX
Canonical Name: MMCX Right Angle Plug, Male Pin, 50 Ohm, Solder Termination, for RG-174/316 Cable
Subcategory: Cable Connectors

MMCX-P-C-H-RA-CA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MMCX-P-C-H-RA-CA1 Estimated Pricing

Qty Low High
1+ $7.00 $7.00
50+ $6.98 $6.98
100+ $6.70 $6.70
250+ $6.23 $6.23
500+ $5.61 $5.61
1,000+ $5.05 $5.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

MMCX-P-C-H-RA-CA1 Features

  • MMCX right-angle plug for RG-174/316 cables.
  • 50 Ohm impedance, 6 GHz frequency range.
  • Snap-on fastening for secure connection.
  • Solder contact, crimp shield termination.
  • Gold-plated brass center contact.

MMCX-P-C-H-RA-CA1 Applications

  • Used in RF module interconnections.
  • Suitable for antenna connector assemblies.
  • Ideal for compact test equipment.
  • Common in wireless communication devices.

MMCX-P-C-H-RA-CA1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the MMCX-P-C-H-RA-CA1?

50 Ohm.

What is the maximum frequency?

6 GHz.

What cable types are compatible?

RG-174 and RG-316.

What is the mounting style?

Free hanging (in-line), right angle.

What is the termination method?

Solder for contact, crimp for shield.

What is the fastening type?

Snap-on.

Is this connector RoHS compliant?

The database indicates RoHS3 compliant, but this is unverified.
