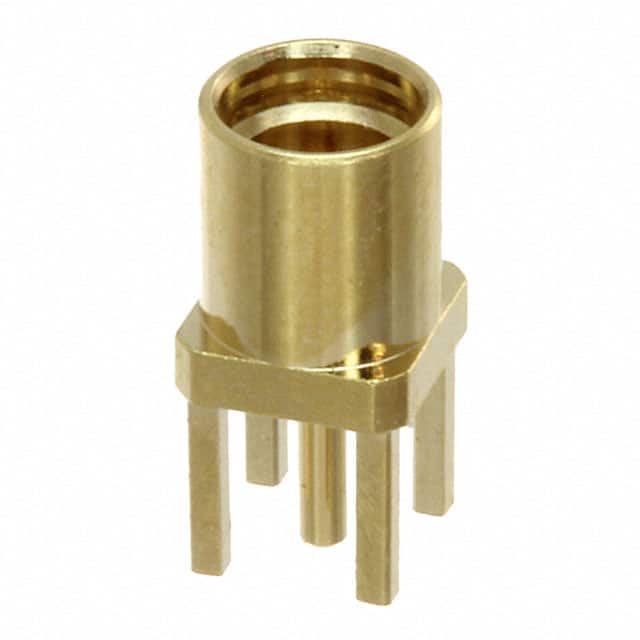

MMCX-J-P-H-ST-TH1 MMCX jack, female socket connector by Samtec. 50 Ohm impedance, 6 GHz maximum frequency, through hole mounting with solder termination.
Mfr Part #:

MMCX-J-P-H-ST-TH1

Available from 3 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
MMCX jack, female socket connector by Samtec. 50 Ohm impedance, 6 GHz maximum frequency, through hole mounting with solder termination.
✓ Total Stock: 10,272 pcs
$ Price Range: $1.20 - $1.98

MMCX-J-P-H-ST-TH1 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MMCX-J-P-H-ST-TH1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

MMCX-J-P-H-ST-TH1 Description

Short technical summary and product information.

The Samtec MMCX-J-P-H-ST-TH1 is a 50 Ohm MMCX coaxial connector featuring a jack (female socket) interface with a snap-on fastening type. Designed for through hole mounting, this connector supports solder termination for both the contact and shield. The center contact is made of beryllium copper, and the housing is gold plated. With a maximum frequency rating of 6 GHz, it is suitable for RF applications up to 6 GHz. This single-port connector is part of Samtec's MMCX series, offering a compact and reliable interconnect solution for coaxial cable assemblies. The through hole design ensures secure mechanical attachment to the PCB. The gold plating on the housing provides corrosion resistance and good conductivity. The snap-on mating mechanism allows for quick and easy connection and disconnection. This connector is commonly used in telecommunications, test equipment, and wireless infrastructure where reliable RF performance is required.

MMCX-J-P-H-ST-TH1 Quick Information

Product Type: Coaxial RF Connector
Series: MMCX
Canonical Name: MMCX Connector, Jack, Female Socket, Through Hole, 50 Ohm
Subcategory: MMCX Connectors

MMCX-J-P-H-ST-TH1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MMCX-J-P-H-ST-TH1 Estimated Pricing

Qty Low High
1+ $1.98 $1.98
100+ $1.75 $1.75
500+ $1.61 $1.61
1,000+ $1.43 $1.43
2,000+ $1.22 $1.22
5,000+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MMCX-J-P-H-ST-TH1 Features

  • MMCX jack connector with snap-on fastening.
  • 50 Ohm characteristic impedance.
  • Frequency range up to 6 GHz.
  • Through hole mounting with solder termination.
  • Gold plated housing and beryllium copper center contact.

MMCX-J-P-H-ST-TH1 Applications

  • Used in RF test and measurement equipment.
  • Ideal for wireless communication modules.
  • Suitable for antenna connections in IoT devices.
  • Common in base station and infrastructure applications.

MMCX-J-P-H-ST-TH1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type for this connector?

Through hole mounting.

What is the impedance of this connector?

50 Ohm.

What is the maximum frequency rating?

6 GHz.

What is the connector gender?

Jack, female socket.

What is the fastening type?

Snap-on.

What is the center contact material?

Beryllium copper.

Is this connector RoHS compliant?

Yes, RoHS3 compliant (low confidence, unverified).

MMCX-J-P-H-ST-TH1 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
MMCX-J-P-H-ST-MT1
MMCX-J-P-H-ST-MT1
Samtec Inc.
MMCX jack, female socket, 50 Ohm impedance, through hole mount, straight orientation, with solder termination and gold plating.
