| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,245 pcs
|
5245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
123 pcs
|
123 pcs | On Request | 1 | On Request | On Request | 0820 | On Request | On Request | |
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination | |
| Termination Style |

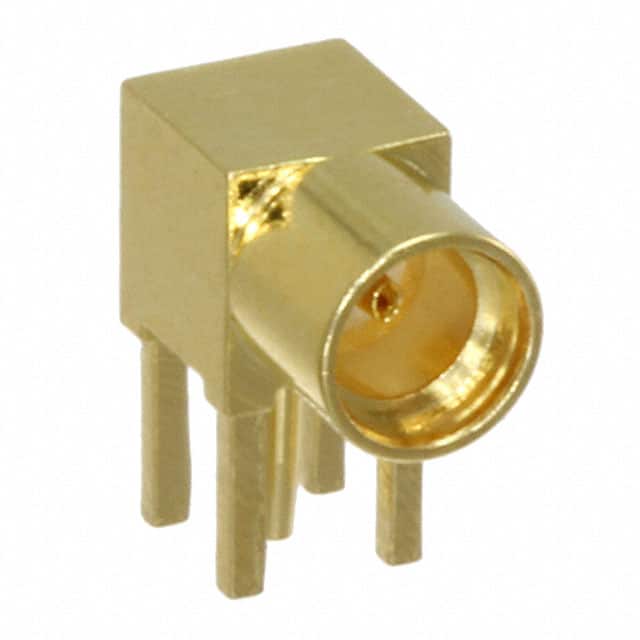

The MMCX-J-P-H-RA-TH1 is a 50 Ohm MMCX jack connector manufactured by Samtec. It features a female socket contact and is designed for right angle through hole mounting on a PCB. The connector operates up to 6 GHz and uses a snap-on fastening mechanism.
The connector has a gold-plated housing and beryllium copper center contact. Both the center contact and shield are terminated via solder. It is a single-port connector.
This MMCX connector is suitable for RF applications requiring a compact, 50 Ohm interface up to 6 GHz. The right angle orientation allows for space-saving PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.98 | $2.98 |
| 100+ | $2.86 | $2.86 |
| 250+ | $2.75 | $2.75 |
| 500+ | $2.55 | $2.55 |
| 1,000+ | $2.49 | $2.49 |
| 5,000+ | $1.97 | $1.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through Hole, Right Angle
50 Ohm
6 GHz
Snap-On
Jack, Female Socket
Solder
Beryllium Copper
