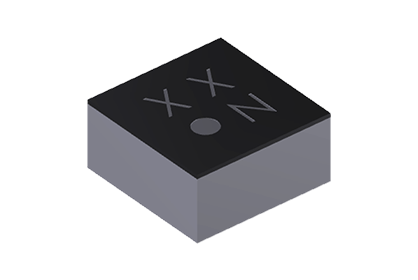

The Memsic MMC5603NJ is a monolithic 3-axis AMR magnetic sensor featuring integrated signal processing and an I2C interface. It measures magnetic fields up to ±30 Gauss (G) with a resolution of 0.0625mG per LSB in its 20-bit operation mode, enabling heading accuracy of ±1º.
Key features include on-chip automatic degaussing with a SET/RESET function to eliminate thermal variation induced offset errors and clear residual magnetization. It also includes on-chip sensitivity compensation and a temperature sensor. The sensor operates over a wide supply voltage range of 1.62V to 3.6V and has a low power consumption.
Packaged in an ultra-small Wafer Level Package (WLP) measuring 0.8x0.8x0.4mm, the MMC5603NJ is suitable for space-constrained designs. Its operating temperature range is -40°C to +85°C, making it versatile for various environments. The sensor's true frequency response extends up to 1kHz.
Applications include electronic compasses, GPS navigation, and general position sensing in devices such as wearable technology, smartphones, and smart home devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The sensing range for each axis is ±30 Gauss.
The device operates on a wide single power supply range from 1.62V to 3.6V.
The MMC5603NJ can operate in temperatures ranging from -40°C to +85°C.
It is supplied in an ultra-small Wafer Level Package (WLP) measuring 0.8x0.8x0.4mm.
The sensor offers a resolution of 20 bits operation mode and 0.0625mG per LSB.
The sensor has a true frequency response up to 1kHz.
