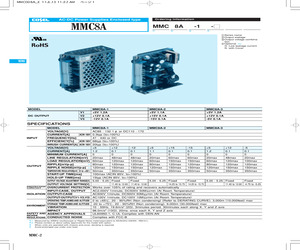

The Cosel MMC50A-2-GN is a versatile AC/DC power supply designed for various applications. This enclosed unit features a chassis mount for easy integration into systems.
Key electrical specifications include an input voltage range of 85-132 VAC or 110-170 VDC, with a frequency range of 47-440 Hz. The power supply delivers a total output power of 50W, with specific outputs of +5V, +15V, and -15V. It operates efficiently with a rated efficiency of 70%.
The unit is designed for reliable operation within an ambient temperature range of 0°C to 65°C. It also includes overcurrent protection with automatic recovery and offers an isolation voltage of 2 kV.
With its robust construction and multiple output capabilities, the MMC50A-2-GN is suitable for ITE (Commercial) applications requiring stable power conversion.
The input voltage range is 85-132 VAC (47-440 Hz) or 110-170 VDC.
The operating temperature range is 0°C to 65°C.
The converter is enclosed and chassis mount, with dimensions 173mm x 93mm x 36mm.
It provides triple outputs: +5V, +15V, and -15V.
The total output power is 50W.
The efficiency is 70%.
Yes, it has overcurrent protection with automatic recovery.
