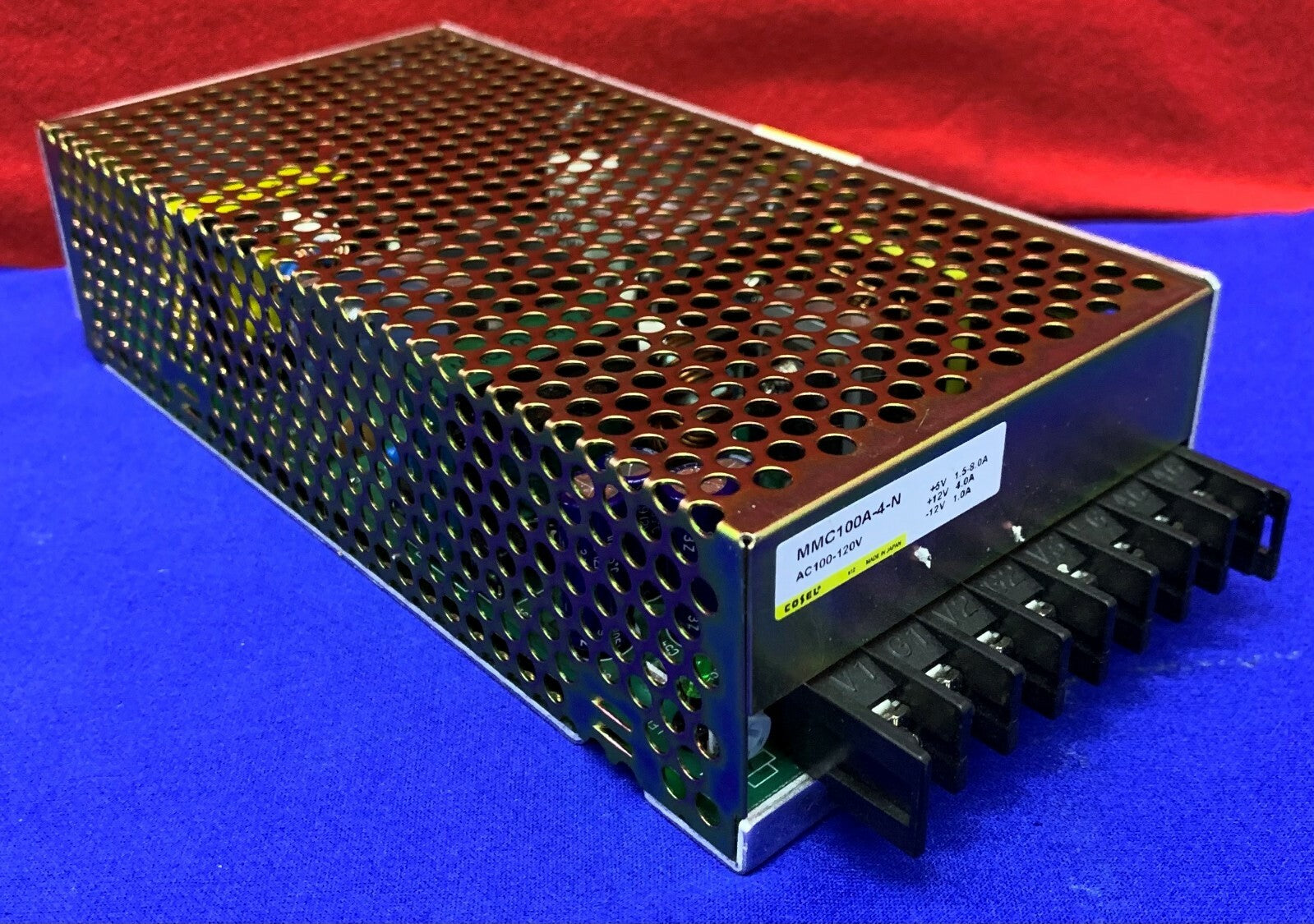

The Cosel MMC100A-4-N is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It features a chassis mount type and provides three distinct output voltages: +5V at 1.2A, +12V at 0.1A, and -12V at 0.1A.
This power supply operates within an input voltage range of 85-132 VAC or 110-170 VDC, with a frequency range of 47-440 Hz. It boasts a typical efficiency of 68% at 100V input and 100% load. Key electrical specifications include line regulation of 20mV max for the +5V output and 48mV max for the +/-12V outputs, and load regulation up to 120mV max. Ripple and noise are kept within 80mVp-p for the +5V output and 120mVp-p for the +/-12V outputs.
The unit operates in an ambient temperature range of 0°C to 65°C and has dimensions of 208.0mm x 93.0mm x 50.0mm. It includes overcurrent protection that automatically recovers when the load exceeds 105% of rating. Safety agency approvals include UL60950-1 and C-UL, and it complies with FCC-B conducted noise standards.
The MMC100A-4-N provides three outputs: +5V at 1.2A, +12V at 0.1A, and -12V at 0.1A.
The AC input range is 85-132 VAC and the DC input range is 110-170 VDC.
The operating temperature range is 0°C to 65°C.
It is approved to UL60950-1 and C-UL, and complies with DEN-AN.
Typical efficiency is 68% at 100 VAC input and full load.
It is an enclosed chassis-mount converter measuring 208.0 x 93.0 x 50.0 mm.
