| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,080 pcs
|
4080 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diode Capacitance | |
| Halogen Free | |
| Junction Temperature | |
| Mounting Type | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel |

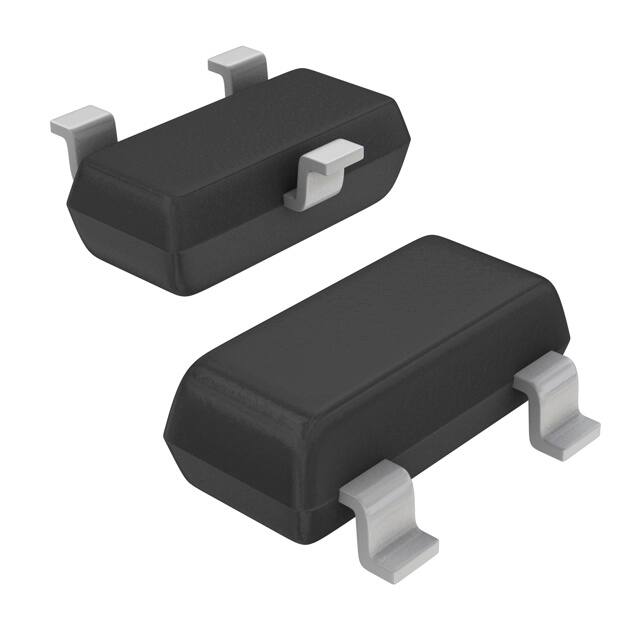

The ON Semiconductor MMBV3401LT3 is a Silicon PIN Diode Switch designed for VHF band switching applications and general-purpose switching circuits. It is supplied in a surface mount SOT-23 package.
Key electrical characteristics include a maximum reverse voltage of 35 Vdc, a maximum diode capacitance of 1.0 pF at 20 Vdc, and a typical series resistance of 0.7 Ω at 10 mAdc and 100 MHz. The maximum forward power dissipation is 200 mW at 25°C ambient temperature.
This device is RoHS Compliant, Halogen Free, and BFR Free. It is suitable for applications requiring reliable switching performance in the VHF frequency range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 35 Vdc.
The typical series resistance is 0.7 Ω at 10 mAdc and 100 MHz.
The diode capacitance is a maximum of 1.0 pF at 20 Vdc.
The MMBV3401LT3 is supplied in a SOT-23 surface mount package.
Yes, the MMBV3401LT3 is RoHS3 Compliant.
Yes, the MMBV3401LT3 is Halogen Free.
