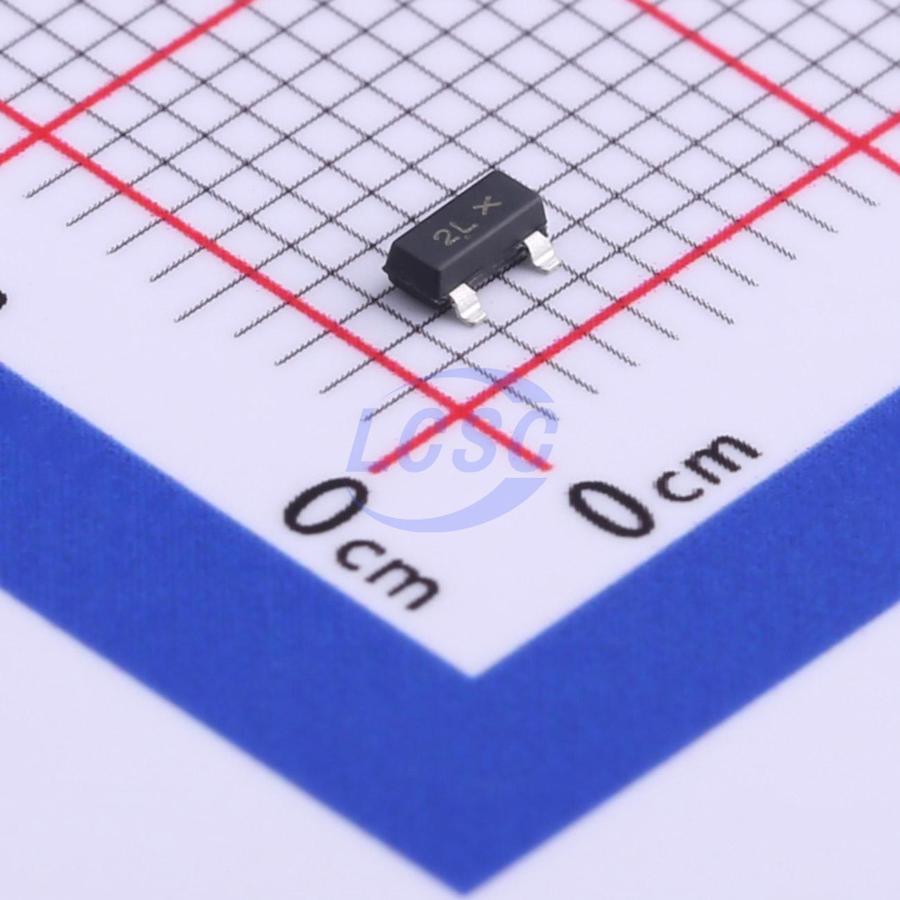

The MMBT5401LT3G is a high voltage PNP silicon transistor manufactured by On Semiconductor. It is designed for applications requiring reliable performance in amplification and switching circuits. Key electrical characteristics include a collector-emitter breakdown voltage of 150V and a continuous collector current of up to 500mA. The device offers a DC current gain (hFE) of at least 60 at 10mA collector current and 5V collector-emitter voltage.
This transistor is housed in a compact SOT-23-3 (TO-236) surface-mount package, making it suitable for space-constrained designs. It operates over a wide temperature range from -55°C to +150°C. The MMBT5401LT3G is Pb-Free and Halogen Free, complying with RoHS standards. Its features make it a versatile component for various electronic circuits in consumer and industrial applications.
Features include AEC-Q101 qualification for automotive applications when using the S or NSV prefix. The device is also PPAP capable. The datasheet specifies thermal characteristics for different mounting substrates, with a total device dissipation of 225mW on an FR-5 board and 300mW on an alumina substrate at 25°C ambient temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) for the MMBT5401LT3G is -150 Vdc.
The MMBT5401LT3G has a continuous collector current rating of -500 mAdc.
The MMBT5401LT3G operates between -55°C and +150°C.
The MMBT5401LT3G is supplied in a SOT-23-3 (TO-236) package.
Yes, the MMBT5401LT3G is RoHS3 Compliant.
The MMBT5401LT3G is used in general purpose signal amplification, switching applications, low-power circuits, consumer electronics, and automotive applications.
