| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,000 pcs
|
42000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,160 pcs
|
1160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Collector - Emitter Saturation Voltage | |
| Current | |
| DC Current Gain (hFE) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Pb-Free | |
| Power | |
| Supplier Device Package | |
| Supplier Package | |
| Total Device Dissipation | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

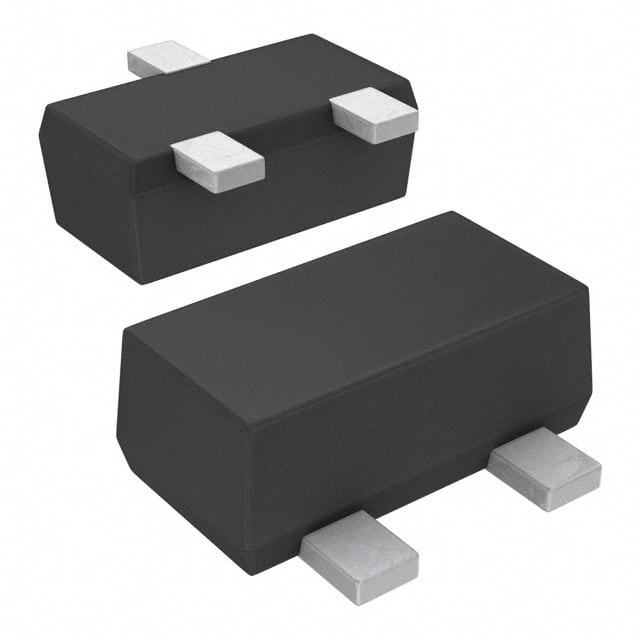

The MMBT2222AT is a general-purpose NPN silicon transistor manufactured by On Semiconductor. It is designed for amplifier applications and housed in a compact SOT-416/SC-75 surface-mount package, making it suitable for low-power applications.
Key electrical characteristics include a maximum collector-emitter voltage (VCEO) of 40V and a continuous collector current (IC) of 600mA. The transistor offers a DC current gain (hFE) of at least 100 at 150mA and 1V. Its saturation voltage (VCE(sat)) is a maximum of 1V at 50mA collector current and 50mA base current. The device operates at frequencies up to 300MHz.
Thermal considerations include a total power dissipation of 150mW at 25°C ambient temperature, with a junction-to-ambient thermal resistance of 833°C/W. The operating and storage junction temperature range is from -55°C to +150°C.
This transistor is Pb-free and halogen-free, complying with RoHS standards. It is supplied in tape and reel packaging with a standard quantity of 3000 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) for the MMBT2222AT is 40 Vdc.
The MMBT2222AT has a continuous collector current (IC) rating of 600 mAdc.
The DC current gain (hFE) of the MMBT2222AT is a minimum of 100 at 150mA collector current and 1V collector-emitter voltage.
The operating and storage junction temperature range for the MMBT2222AT is -55°C to +150°C.
The MMBT2222AT is supplied in the SOT-416/SC-75 package.
