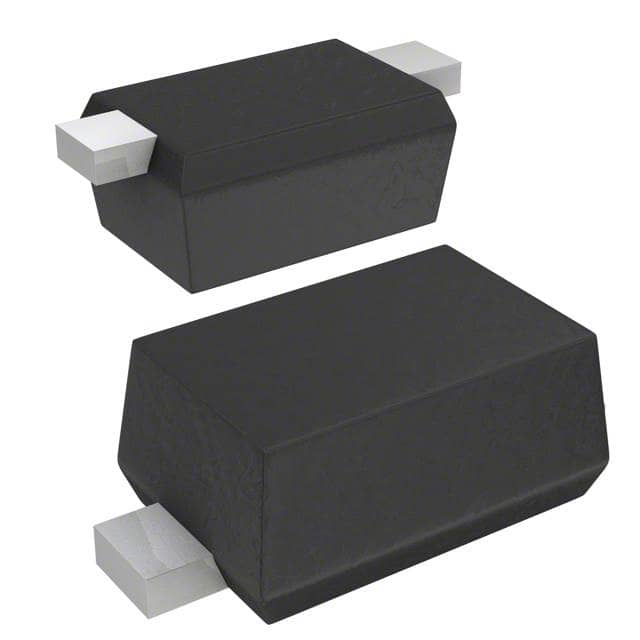

The PANJIT MMBD4148TS is a surface mount switching diode designed for high-speed switching applications. It features a maximum reverse voltage of 75V (100V peak) and an average forward current of 150mA. The forward voltage ranges from 0.715V at 1mA to 1.25V at 150mA, ensuring efficient operation across a wide current range. With a reverse recovery time of just 4ns, this diode is ideal for fast switching circuits.
The diode offers low total capacitance of 1.5pF, minimizing signal distortion in high-frequency applications. It is housed in a compact SOD-523 package (SC-79), suitable for automated surface mount assembly. The device is RoHS3 compliant, lead-free, and uses a green molding compound per IEC 61249, making it environmentally friendly.
Typical applications include high-speed switching, signal rectification, protection circuits, and clamping in portable electronics. The maximum power dissipation is 200mW, and the junction temperature can reach up to 150°C. The thermal resistance is 635°C/W, which should be considered in thermal design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.06 | $0.06 |
| 100+ | $0.04 | $0.04 |
| 500+ | $0.03 | $0.03 |
| 1,000+ | $0.03 | $0.03 |
| 5,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (DC blocking) is 75V, with peak reverse voltage of 100V and RMS voltage of 50V.
The maximum average forward current is 150mA at 25°C ambient.
At 1mA, maximum forward voltage is 0.715V; at 10mA, 0.855V; at 50mA, 1.0V; at 150mA, 1.25V.
The maximum reverse recovery time is 4ns under test conditions IF=10mA, IR=1mA, VR=6V, RL=100Ω.
It is available in surface mount SOD-523 package (SC-79).
The maximum total capacitance is 1.5pF at VR=0V, f=1MHz.
Yes, it is RoHS3 compliant and lead-free, with green molding compound per IEC 61249.
