| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50,000 pcs
|
50000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
21,020 pcs
|
21020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance @ Vr, F | |
| Diode Type | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

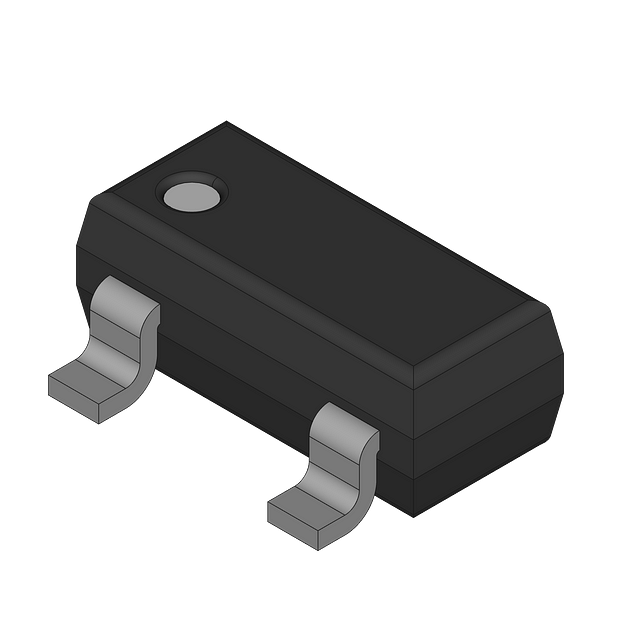

The MMBD301LT3G is a silicon hot-carrier Schottky barrier diode designed for high-efficiency UHF and VHF detector applications. It is also suitable for fast switching RF and digital circuits. The device is supplied in a surface mount SOT-23-3 (TO-236) package.
Key electrical specifications include a maximum reverse voltage of 30V, a maximum forward current of 200mA, and a total power dissipation of 200mW. The diode exhibits very low capacitance of 1.5pF (max) at 15V reverse bias and 1MHz, and a low forward voltage of 0.38V typical at 1mA forward current. Reverse leakage current is typically 13nA at 25V.
The device is Pb-Free, Halogen Free/BFR Free, and RoHS compliant. It operates over a junction temperature range of -55°C to +125°C. The SOT-23-3 package is suitable for automated surface mount assembly.
This diode is ideal for RF detector circuits, switching applications, and other high-speed digital circuits requiring low capacitance and fast switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.05 | $0.05 |
| 100+ | $0.04 | $0.04 |
| 500+ | $0.04 | $0.04 |
| 1,000+ | $0.03 | $0.03 |
| 2,500+ | $0.03 | $0.03 |
| 10,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 30V.
The maximum average rectified forward current is 200mA.
The typical forward voltage is 0.38V at 1mA forward current.
It is available in a surface mount SOT-23-3 (TO-236) package.
The maximum capacitance is 1.5pF at 15V reverse bias and 1MHz.
The typical reverse leakage current is 13nA at 25V reverse voltage.
The operating junction temperature range is -55°C to +125°C.
