| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,676 pcs
|
5676 pcs | On Request | 1 | On Request | On Request | 1348+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Acceleration Range | |
| Halogen Free | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Sensitivity | |
| Tape & Reel | |
| Voltage |

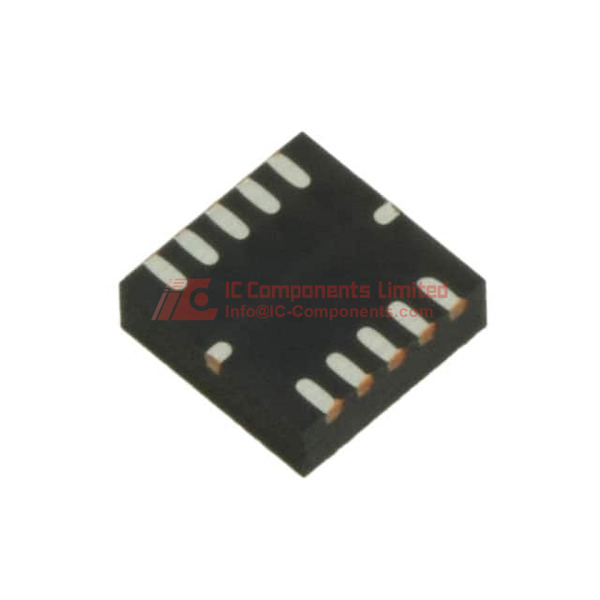

The Freescale Semiconductor MMA7660FCT is a highly efficient 3-axis accelerometer designed for orientation and motion detection. It features a digital I2C interface and operates with low power consumption, making it suitable for battery-powered devices.
The sensor provides an acceleration range of ±1.5g and supports configurable sample rates from 1 to 120 samples per second. It operates within a voltage range of 1.71V to 3.6V for digital signals and 2.4V to 3.6V for analog signals. The device is housed in a compact 3mm x 3mm x 0.9mm DFN package and supports surface mount.
Key features include auto-wake/sleep functionality for power saving, tilt orientation detection for portrait/landscape capabilities, and gesture detection such as shake and tap. The MMA7660FCT is also designed for robust performance with high shock survivability.
Typical applications include mobile phones, PDAs, laptops for anti-theft features, gaming devices, and digital still cameras for image stability. The device is RoHS compliant and Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The acceleration range is ±1.5 g.
The MMA7660FCT uses an I2C interface.
The digital operating voltage is between 1.71 V and 3.6 V, and the analog operating voltage is between 2.4 V and 3.6 V.
The operating temperature range is -40°C to 85°C.
The MMA7660FCT is available in a 10-DFN package and a 228-LFBGA package.
The sensitivity is 21.33 LSB/g.
The MMA7660FCT measures acceleration on the X, Y, and Z axes.
