| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,695 pcs
|
6695 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage |

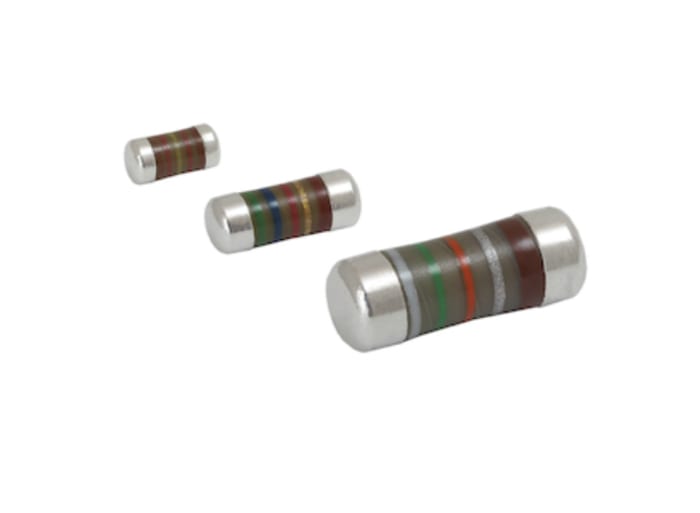

This Vishay Dale MMA02040C1009FB000 is a surface mount MELF resistor designed for reliable performance. It features a resistance value of 10 Ohms with a tight tolerance of ±1% and a power rating of 0.4W. The thin film technology ensures stability and accuracy.
The resistor operates across a wide temperature range from -55°C to 155°C, making it suitable for various environmental conditions. It is qualified to the AEC-Q200 automotive standard, indicating its suitability for demanding applications. The package size is 0204, and it is designed for surface mounting.
Key electrical characteristics include a temperature coefficient of ±50 ppm/°C and a voltage rating of 200V. The component also includes features like anti-sulfur protection, further enhancing its durability in specific environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 Ohms.
The tolerance is ±1%.
The power rating is 0.4W.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is qualified to the AEC-Q200 standard.
The package type is MELF, 0204.
