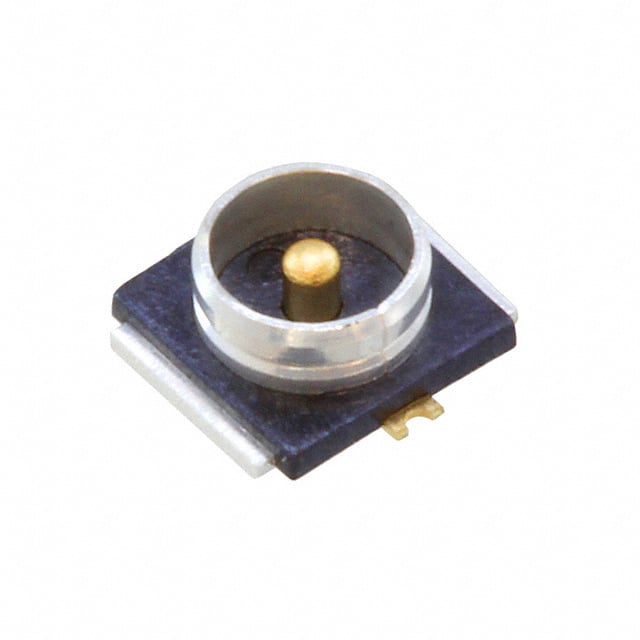

MM9329-2700RB5 Murata MM9329-2700RB5 is a GSC receptacle with female socket, 50 Ohm impedance, surface mount, and solder termination, rated up to 6 GHz.
Mfr Part #:

MM9329-2700RB5

Available from 1 distributors
Mfr Name: Murata
Murata
Murata MM9329-2700RB5 is a GSC receptacle with female socket, 50 Ohm impedance, surface mount, and solder termination, rated up to 6 GHz.
✓ Total Stock: 1,724 pcs

MM9329-2700RB5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
1,724 pcs
On Request
1724 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MM9329-2700RB5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
Termination Style
View Similar Products (0)

MM9329-2700RB5 Description

Short technical summary and product information.

The Murata MM9329-2700RB5 is a GSC (Giga-Snap Connector) receptacle designed for RF applications requiring a reliable snap-on fastening mechanism. This female socket connector features a 50 Ohm characteristic impedance and supports frequencies up to 6 GHz, making it suitable for microwave and high-frequency signal transmission.



The connector is surface mountable with both contact and shield terminations using solder, ensuring a robust electrical and mechanical connection. The housing is silver-colored, and the center contact is made of copper alloy for good conductivity and durability. It is RoHS compliant as per the manufacturer's catalog.



This component is ideal for use in wireless communication modules, test equipment, and other RF systems where a compact, low-profile coaxial interface is needed. The snap-on fastening type allows for quick mating and unmating without tools.

MM9329-2700RB5 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: GSC
Canonical Name: GSC Receptacle, Female Socket, 50 Ohm, Surface Mount, Solder Termination
Subcategory: GSC Connector

MM9329-2700RB5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MM9329-2700RB5 Features

  • GSC receptacle with snap-on fastening.
  • 50 Ohm impedance for RF matching.
  • 6 GHz maximum operating frequency.
  • Surface mount with solder termination.
  • RoHS compliant per manufacturer.

MM9329-2700RB5 Applications

  • Used in wireless communication modules.
  • Ideal for RF test and measurement.
  • Suitable for microwave signal routing.
  • Applied in compact SMD designs.

MM9329-2700RB5 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the MM9329-2700RB5?

The impedance is 50 Ohm.

What is the maximum frequency rating?

The maximum frequency is 6 GHz.

What type of mounting does this connector use?

It uses surface mount (SMD) mounting.

What is the fastening type?

The fastening type is snap-on.

Is the MM9329-2700RB5 RoHS compliant?

Yes, it is RoHS compliant as stated in the manufacturer's catalog.
