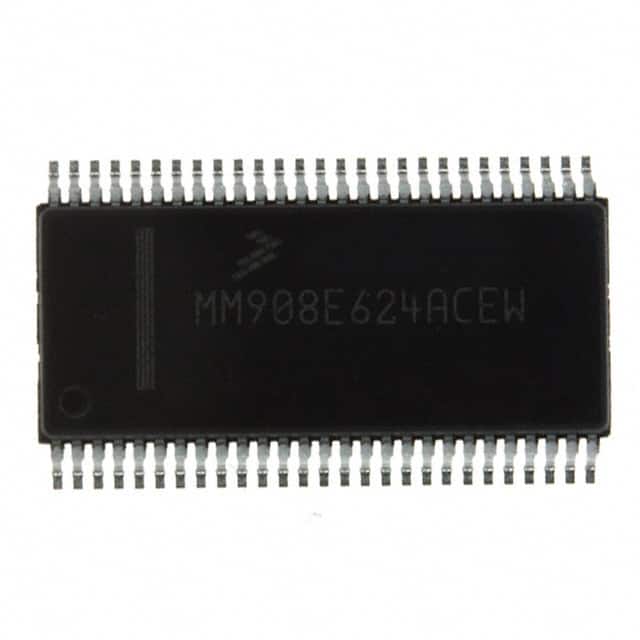

MM908E624ACPEW The NXP Semiconductors MM908E624ACPEW is an application-specific microcontroller featuring a HC08 core, 16KB of Flash memory, and a LIN interface. It operates within a temperature range of -40°C to 85°C.
Mfr Part #:

MM908E624ACPEW

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MM908E624ACPEW is an application-specific microcontroller featuring a HC08 core, 16KB of Flash memory, and a LIN interface. It operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 21,268 pcs
$ Price Range: $4.72

MM908E624ACPEW Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
21,268 pcs
On Request
21268 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MM908E624ACPEW Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Controller Series
Core Processor
Interface
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Program Memory Size
Program Memory Type
RAM Size
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MM908E624ACPEW Description

Short technical summary and product information.

The NXP Semiconductors MM908E624ACPEW is an integrated single-package solution designed for automotive applications. It combines a high-performance HC08 microcontroller with a SMARTMOS analog control IC.



Key features include 16KB of on-chip flash memory, 512 Bytes of RAM, and a 10-bit Analog-to-Digital Converter (ADC). The device offers a LIN physical layer interface and supports SCI and SPI communication protocols. It provides three high-side outputs and 16 microcontroller I/Os.



This microcontroller is well-suited for controlling automotive high-current motor applications using relays, such as window lifts, fans, and sun roofs. It operates within a voltage range of 5.5V to 18V and has an operating temperature range of -40°C to 85°C.



The MM908E624ACPEW is available in a 54-pin SOICW package and is designed for surface mount applications.

MM908E624ACPEW Quick Information

Product Type: Application Specific Microcontroller
Series: 908E
Canonical Name: Integrated Triple High Side Switch with Embedded MCU and LIN Serial Communication for Relay Drivers
Subcategory: Application Specific

MM908E624ACPEW Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MM908E624ACPEW Estimated Pricing

Qty Low High
1+ $4.72 $4.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

MM908E624ACPEW Features

  • Integrated triple high side switch.
  • Embedded MCU with HC08 core.
  • 16KB on-chip flash memory.
  • LIN serial communication interface.
  • Suitable for automotive motor control.

MM908E624ACPEW Applications

  • Automotive mirror control systems.
  • Relay driver applications.
  • Window lift motor control.
  • Fan motor control.
  • Sun roof motor control.

MM908E624ACPEW FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the MM908E624ACPEW?

-40°C to 85°C

What type of memory does the MM908E624ACPEW have?

It has 16KB of on-chip flash memory and 512 Bytes of RAM.

What communication interfaces are supported by the MM908E624ACPEW?

It supports SCI and SPI interfaces, along with a LIN physical layer.

What is the package type for the MM908E624ACPEW?

The package is a 54-pin SOICW.

What voltage range does the MM908E624ACPEW operate within?

It operates within a voltage range of 5.5V to 18V.
