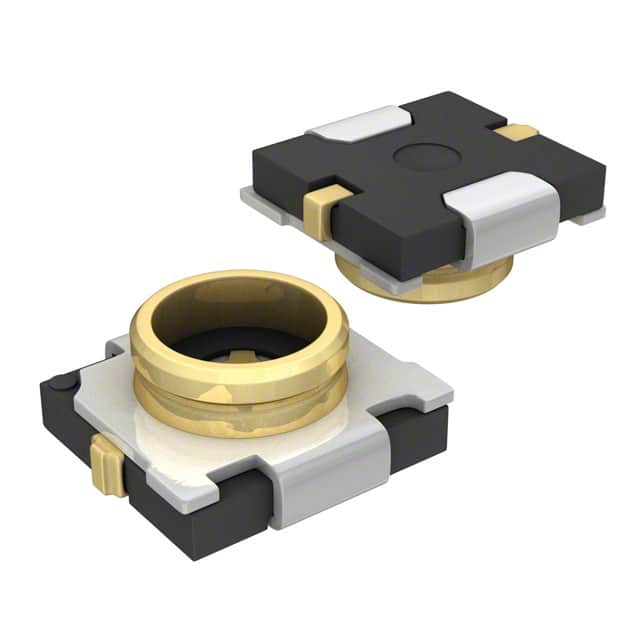

MM8030-2600RJ3 SWG coaxial receptacle, female socket, 50 Ohm impedance, DC to 11 GHz. Surface mount with solder termination, snap-on fastening, and internal switch.
Mfr Part #:

MM8030-2600RJ3

Available from 3 distributors
Mfr Name: Murata
Murata
SWG coaxial receptacle, female socket, 50 Ohm impedance, DC to 11 GHz. Surface mount with solder termination, snap-on fastening, and internal switch.
✓ Total Stock: 6,737 pcs
$ Price Range: $0.24

MM8030-2600RJ3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,462 pcs
On Request
2462 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2,462 pcs
On Request
2462 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,813 pcs
On Request
1813 pcs On Request 1 On Request On Request 11+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MM8030-2600RJ3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Connector Style
Connector Type
Contact Resistance
Contact Termination
Durability
Fastening Type
Features
Frequency
Frequency Range
Housing Color
Impedance
Insulation Resistance
Mounting Type
Number of Ports
Power Rating
Shield Termination
Tape & Reel
Temperature Range
Voltage Rating
Withstanding Voltage
View Similar Products (0)

MM8030-2600RJ3 Description

Short technical summary and product information.

The Murata MM8030-2600RJ3 is a surface mount SWG coaxial receptacle with a female socket contact. It is designed for 50 Ohm impedance and operates from DC to 11 GHz. Electrical ratings include a maximum voltage of 250 V rms, power handling of 2 W, and an operating temperature range of -40°C to +85°C. The connector features low VSWR (1.2 max DC-3 GHz, 1.3 max 3-6 GHz, 1.5 max 6-11 GHz) and low insertion loss (0.1 dB, 0.2 dB, 0.5 dB respectively). Isolation is 20 dB min DC-3 GHz, 15 dB min 3-6 GHz, and 10 dB min 6-11 GHz. Contact resistance is 70 mΩ max, insulation resistance 500 MΩ min, and withstanding voltage 300 V AC rms. The connector includes an internal switch for signal routing. Mechanical features include surface mount with solder termination for both contact and shield, snap-on fastening, and a gold plated housing. Durability is rated at 100 cycles. Packaging is on a 178 mm reel with 3000 pieces per reel.

MM8030-2600RJ3 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: MM8030
Canonical Name: Coaxial Connector (RF) Assembly, SWG Receptacle, Female Socket, 50 Ohm, Surface Mount
Subcategory: SWG Receptacle

MM8030-2600RJ3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

MM8030-2600RJ3 Estimated Pricing

Qty Low High
3,000+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

MM8030-2600RJ3 Features

  • 50 Ohm impedance for RF signal integrity.
  • DC to 11 GHz frequency range.
  • Surface mount with snap-on fastening.
  • Internal switch for signal routing.
  • Gold plated housing for corrosion resistance.

MM8030-2600RJ3 Applications

  • Used in wireless communication modules.
  • Ideal for RF test and measurement equipment.
  • Suitable for antenna connections in portable devices.

MM8030-2600RJ3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the MM8030-2600RJ3?

The maximum voltage rating is 250 V rms.

What frequency range does this connector support?

It operates from DC to 11 GHz.

What is the characteristic impedance?

The impedance is 50 Ohms.

What mounting type does the MM8030-2600RJ3 use?

It is a surface mount connector with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Does this connector include an internal switch?

Yes, it features an internal switch.

What is the standard packaging quantity?

It is packaged in a 178 mm reel with 3000 pieces per reel.
