| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Memory Type | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Standards | |
| Tape & Reel |

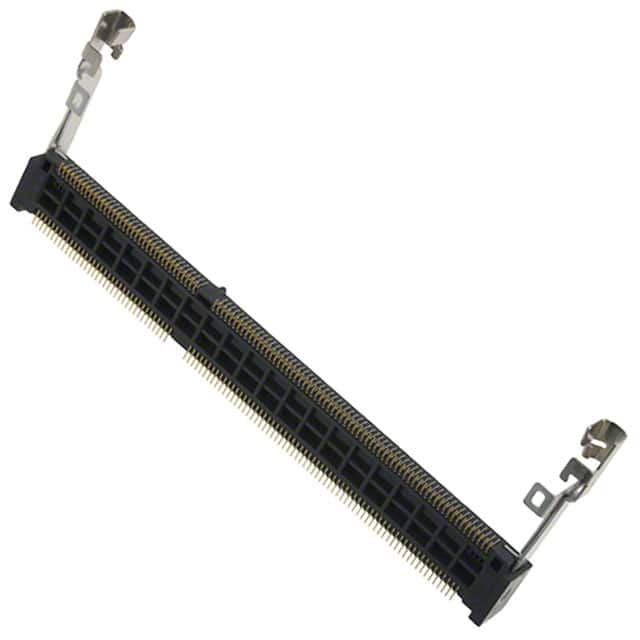

The JAE Electronics MM80-204B1-1 is a 204-position SODIMM connector designed for DDR3 SDRAM modules. It features a small outline dual in-line memory module (SODIMM) style, making it suitable for space-constrained applications requiring reliable memory connections.
The connector offers gold-plated contacts with a thickness of 3.94 microinches (0.10 micrometers), ensuring excellent conductivity and corrosion resistance. It includes integrated latches for secure module retention, preventing accidental disconnection during operation.
For mounting, the MM80-204B1-1 supports surface mount, right-angle orientation with an additional screw mount feature for enhanced mechanical stability. It conforms to the MO-268C standard, ensuring compatibility with standard DDR3 SODIMM modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.11 | $7.11 |
| 10+ | $6.05 | $6.05 |
| 25+ | $5.67 | $5.67 |
| 50+ | $5.40 | $5.40 |
| 100+ | $5.14 | $5.14 |
| 250+ | $4.66 | $4.66 |
| 400+ | $4.43 | $4.43 |
| 1,200+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
204 positions.
Surface Mount, Right Angle, with Screw Mount feature.
DDR3 SDRAM.
Gold with thickness of 3.94µin (0.10µm).
Yes, it includes latches for secure module retention.
MO-268C.
SODIMM (Small Outline Dual In-line Memory Module).
