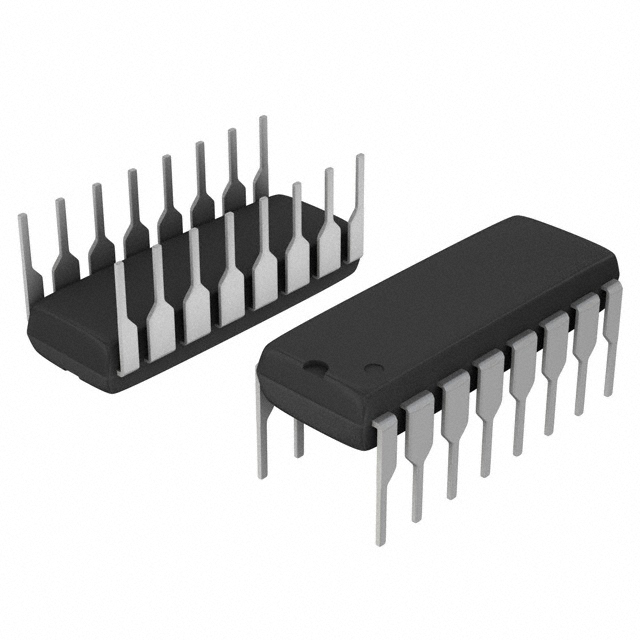

MM74HC423AN The On Semiconductor MM74HC423AN is a dual retriggerable monostable multivibrator. It operates over a wide voltage range and offers fast propagation delay.
Mfr Part #:

MM74HC423AN

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor MM74HC423AN is a dual retriggerable monostable multivibrator. It operates over a wide voltage range and offers fast propagation delay.
✓ Total Stock: 330 pcs
$ Price Range: $0.50

MM74HC423AN Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
230 pcs
On Request
230 pcs On Request 1 On Request On Request 9812 On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MM74HC423AN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Independent Circuits
Logic Type
Mounting Type
Operating Temperature
Propagation Delay
Quiescent Current
Schmitt Trigger Input
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

MM74HC423AN Description

Short technical summary and product information.

The MM74HC423AN is a high-speed dual retriggerable monostable multivibrator from On Semiconductor, utilizing advanced silicon-gate CMOS technology. It offers speeds comparable to low-power Schottky TTL while retaining the low power and high noise immunity characteristic of CMOS circuits.



This device features both negative (A) and positive (B) transition triggered inputs, either of which can function as an inhibit input. A clear input is also included to reset the one-shot when taken LOW. The MM74HC423AN is retriggerable, meaning the output pulse can be extended by repeated triggering.



Key electrical specifications include a wide power supply range of 2V to 6V and a typical propagation delay of 40 ns. The output pulse width is determined by the formula PW = (REXT)(CEXT). All inputs are protected against static discharge.



The MM74HC423AN is supplied in a 16-DIP (0.300", 7.62mm) through-hole package, suitable for various industrial and commercial applications requiring precise timing.

MM74HC423AN Quick Information

Product Type: Monostable Multivibrator
Series: 74HC
Canonical Name: MM74HC423A Dual Retriggerable Monostable Multivibrator

MM74HC423AN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MM74HC423AN Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

MM74HC423AN Features

  • Dual retriggerable monostable multivibrator.
  • Wide 2V to 6V power supply range.
  • Fast 40 ns typical propagation delay.
  • Schmitt trigger inputs for flexibility.
  • Standard 16-DIP through-hole package.

MM74HC423AN Applications

  • Used for pulse generation circuits.
  • Suitable for timing control applications.
  • Ideal for delay circuits.
  • Can be used in waveform shaping.

MM74HC423AN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the MM74HC423AN?

2V to 6V.

What is the package type of the MM74HC423AN?

16-DIP (0.300", 7.62mm) through-hole package.

What is the operating temperature range of the MM74HC423AN?

-40°C to 85°C.

What is the propagation delay of the MM74HC423AN?

40 ns typical.

Does the MM74HC423AN have a Schmitt trigger input?

Yes.

What is the maximum quiescent current of the MM74HC423AN?

80 µA maximum.

What is the fanout of the MM74HC423AN?

10 LS-TTL loads.
