| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Height | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance (Maximum @ After test) | |
| Contact Resistance (Maximum @ Initial) | |
| Depth | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Gender | |
| Height (Connector) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Rated Current | |
| Read Out | |
| Tape & Reel | |
| Termination | |
| Width |

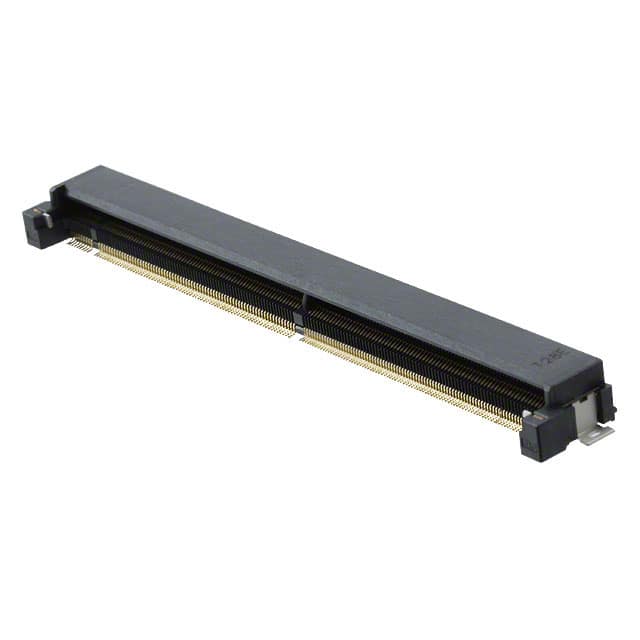

The JAE Electronics MM70-314B2-1-R500 is a female edgeboard connector designed for MXM 3.0 standard graphics modules. It features 314 positions (310 utilized) arranged in a dual readout configuration on a 0.5mm pitch. The connector has a surface mount, right angle mounting style with solder termination and gold plated copper alloy contacts (0.3µm minimum gold plating).
Electrical specifications include a rated current of 0.5A per pin, initial contact resistance of 55mΩ maximum, and dielectric withstanding voltage of AC 250Vr.m.s per minute. The operating temperature range is -40°C to +85°C. Mechanical durability is rated for 30 mating cycles.
The connector measures 89.9mm in width, 12.20mm in depth, and 6.7mm in height (for 3.0mm board height variant). It is RoHS compliant and compatible with MXM 3.0 card edge type modules. The black insulator is made of heat resistant plastic.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.69 | $8.69 |
| 10+ | $7.82 | $7.82 |
| 25+ | $7.37 | $7.37 |
| 50+ | $7.18 | $7.18 |
| 100+ | $6.99 | $6.99 |
| 250+ | $6.51 | $6.51 |
| 500+ | $5.53 | $5.53 |
| 1,000+ | $5.17 | $5.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm (0.020").
It has 314 positions (310 utilized).
The rated current is 0.5A per pin maximum.
Surface mount, right angle.
-40°C to +85°C.
Yes, it is RoHS compliant.
