| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
327 pcs
|
327 pcs | On Request | 1 | On Request | On Request | 2016-08-09 | On Request | On Request | |
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Durability | |
| Features | |
| Gender | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination | |
| Termination Style |

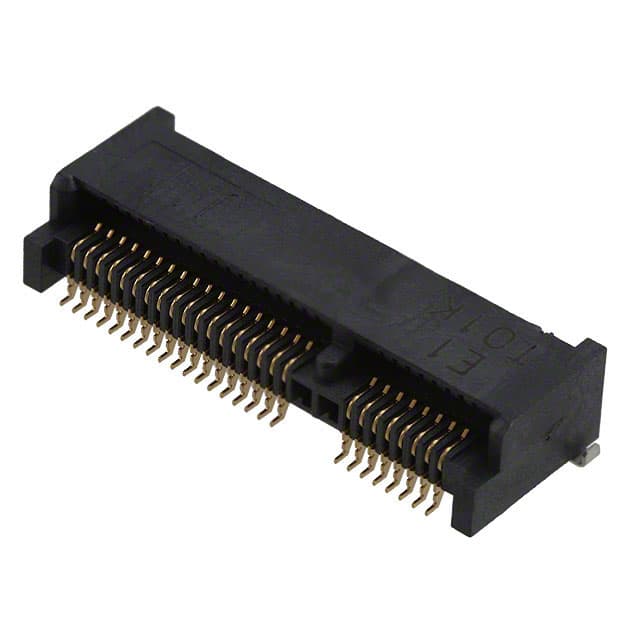

The JAE Electronics MM60-52B1-E1-R650 is a PCI Express Mini Card module socket. It is a female connector with 52 positions arranged in 2 rows at a 0.80mm pitch. The connector is designed for surface mount, right angle mounting and features solder termination. Contact material is copper alloy with gold plating of 0.10µm thickness. The connector supports dual readout and includes a board guide feature for alignment.
The operating temperature range is -40°C to 85°C. The current rating is 0.5A per contact, with a durability of 50 mating cycles. The card thickness supported is 1.00mm. This connector is suitable for PCI Express Mini Card applications in computing and embedded systems.
The connector is RoHS3 compliant, REACH unaffected, and has a moisture sensitivity level of 1 (unlimited). These compliance statuses are unverified. The connector is available in surface mount packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
| 10+ | $1.84 | $1.84 |
| 25+ | $1.65 | $1.65 |
| 100+ | $1.57 | $1.57 |
| 250+ | $1.47 | $1.47 |
| 650+ | $1.35 | $1.35 |
| 1,300+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
52 positions.
0.80mm.
0.5A.
Surface mount, right angle.
-40°C to 85°C.
1.00mm.
50 mating cycles.
