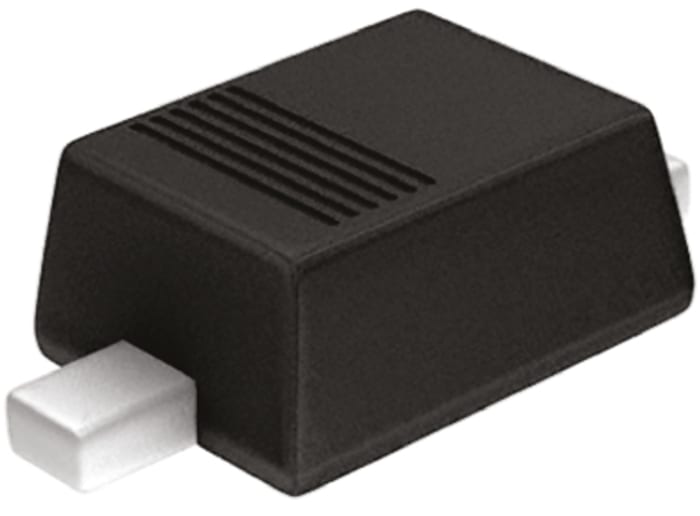

The MM3Z3V6C is a Zener diode from On Semiconductor's MM3Z2V4C to MM3Z75VC series. It provides a nominal zener voltage of 3.6V with a tolerance of ±5%, and is tested at a reverse current of 5 mA. The device is designed for general voltage regulation and clamping applications in low-power circuits.
Key electrical specifications include a maximum impedance (Zzt) of 84 Ω at the test current, a maximum reverse leakage current of 4.5 µA at 1V, and a maximum forward voltage of 1.0V at 10 mA. The maximum power dissipation is 200 mW, with an operating and storage temperature range of -65°C to 150°C. The thermal resistance from junction to ambient (RθJA) is rated at 595 °C/W when mounted on a PCB with a minimum land pad.
The device is housed in an SOD-323FL surface mount package (also referred to as SOD-323F or SC-90) and is supplied in tape and reel packaging with a standard quantity of 3000 pieces. It is Pb-Free and RoHS compliant, making it suitable for use in environmentally conscious designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
| 10+ | $0.14 | $0.14 |
| 100+ | $0.08 | $0.08 |
| 500+ | $0.06 | $0.06 |
| 1,000+ | $0.05 | $0.05 |
| 3,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal zener voltage is 3.6V with a range of 3.42V minimum to 3.78V maximum, tested at 5 mA.
The maximum power dissipation is 200 mW.
It is a surface mount device in a SOD-323FL package (also referred to as SOD-323F or SC-90).
Yes, the datasheet states it is Pb-Free and RoHS Compliant.
The maximum forward voltage is 1.0V at a forward current of 10 mA.
The operating temperature range is -65°C to 150°C.
The standard packaging quantity is 3000 pieces per tape and reel.
