MM126320 The Murata MM126320 is an SMA-Female measurement probe designed for SWD, SWF, and SWG connectors. It offers a nominal impedance of 50 Ohms and operates from DC to 6GHz.
Mfr Part #:

MM126320

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata MM126320 is an SMA-Female measurement probe designed for SWD, SWF, and SWG connectors. It offers a nominal impedance of 50 Ohms and operates from DC to 6GHz.
✓ Total Stock: 10 pcs
$ Price Range: $1.00

MM126320 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MM126320 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Accessory Type
Approval Agency
Automotive Grade
Durability
Features
For Use With
Frequency Range
Impedance
Industrial Grade
Insulation Resistance
Medical Grade
Military Grade
Storage Temperature
Tape & Reel
Temperature Rating
Voltage Rating
Withstanding Voltage
View Similar Products (0)

MM126320 Description

Short technical summary and product information.

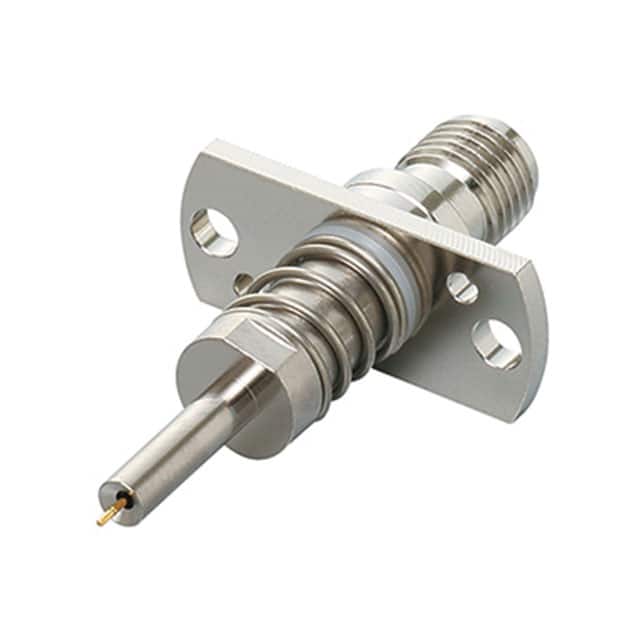

This Murata MM126320 is a coaxial connector accessory, specifically a measurement probe designed for use with SWD, SWF, and SWG connectors. It features an SMA-Female interface and a nominal impedance of 50 Ohms.



The probe is rated for a maximum voltage of 30V r.m.s. and operates within a frequency range of DC to 6GHz. Its temperature rating is from -40°C to +85°C. Electrical specifications include a minimum insulation resistance of 500 MOhms and a withstanding voltage of 300V AC r.m.s. for one minute.



Mechanical dimensions include a probe diameter of 2.5mm and an overall length of 32.85mm. The probe has a durability rating of 1 million cycles. It is designed for automatic measurement applications, attaching to a measurement machine via two screw holes in the probe flange.



Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status. This probe is suitable for applications requiring precise RF measurements within its specified parameters.

MM126320 Quick Information

Product Type: Measurement Probe
Canonical Name: Murata MM126320 SMA-Female Measurement Probe
Subcategory: Measurement Probe

MM126320 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MM126320 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MM126320 Features

  • SMA-Female coaxial measurement probe.
  • Designed for SWD, SWF, and SWG connectors.
  • 50 Ohm nominal impedance.
  • DC to 6GHz frequency range.
  • Rated for 30V r.m.s. maximum voltage.

MM126320 Applications

  • Suitable for RF measurement and testing setups.
  • Used in high-frequency communication equipment.
  • Ideal for laboratory RF signal analysis.
  • Applicable in aerospace RF systems.
  • Designed for precision RF connector applications.

MM126320 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the MM126320 measurement probe?

The voltage rating is 30V r.m.s. maximum.

What is the nominal impedance of the MM126320 probe?

The nominal impedance is 50 Ohms.

What is the operating frequency range of the MM126320?

The probe operates from DC to 6GHz.

What is the temperature rating for this coaxial probe?

The temperature rating is -40°C to +85°C.

What is the contact resistance for the center conductor?

The center contact resistance is a maximum of 25 mOhms.

What is the durability of the MM126320 probe?

The durability is rated for 1 million cycles.

What is the MSL rating for the MM126320?

The Moisture Sensitivity Level is 1 Unlimited.
