| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Primary Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

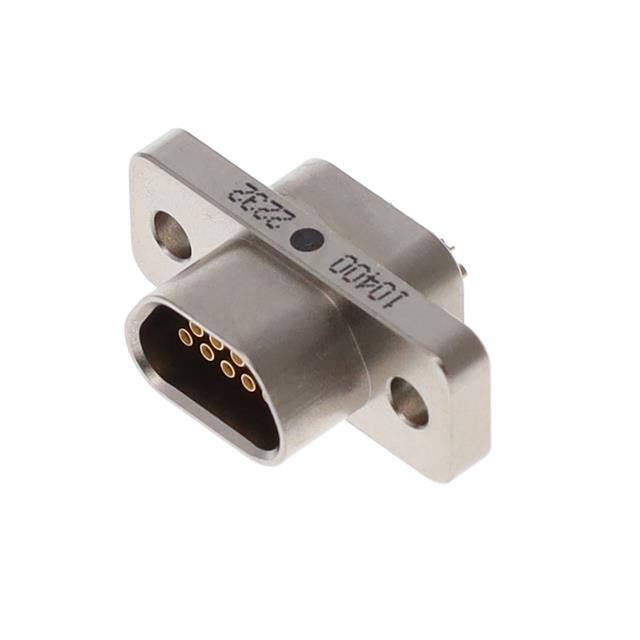

The MM-222-009-213-0000 is a Micro-D receptacle connector from AirBorn. It features 9 positions arranged in 2 rows with a 0.050 inch pitch and 0.050 inch row-to-row spacing. The connector uses female socket contacts with a gold finish of 50µin (1.27µm) thickness, ensuring reliable signal transmission.
This connector is designed for free hanging (in-line) mounting and uses solder cup termination for easy wire attachment. The shell is made of aluminum alloy with electroless nickel plating, providing durability and EMI shielding. The flange feature includes a housing/shell (unthreaded) design.
With a current rating of 3A per contact, this connector is suitable for signal applications in harsh environments. It is classified as a D-Type, Micro-D connector assembly, commonly used in military, aerospace, and industrial applications where space is constrained.
| Qty | Low | High |
|---|---|---|
| 1+ | $104.50 | $104.50 |
| 10+ | $91.50 | $91.50 |
| 25+ | $81.97 | $81.97 |
| 50+ | $76.39 | $76.39 |
| 100+ | $73.54 | $73.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
0.050 inch pitch with 0.050 inch row-to-row spacing.
3A.
Free hanging (in-line) with solder cup termination.
Gold with 50µin (1.27µm) thickness.
Aluminum alloy with electroless nickel plating.
D-Type, Micro-D.
